Details
-
Machine ID ML-34901
-
Category Lathes
-

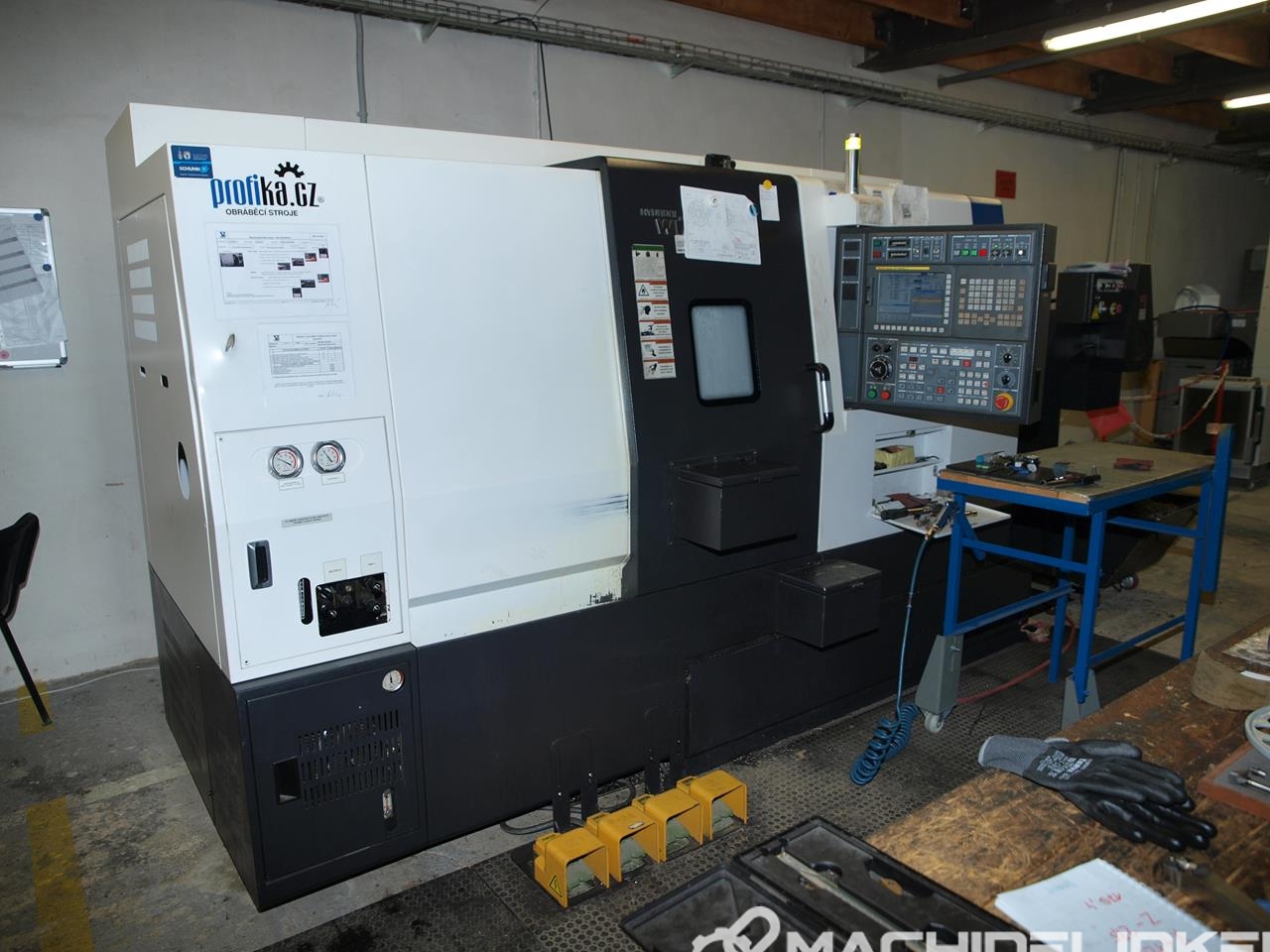

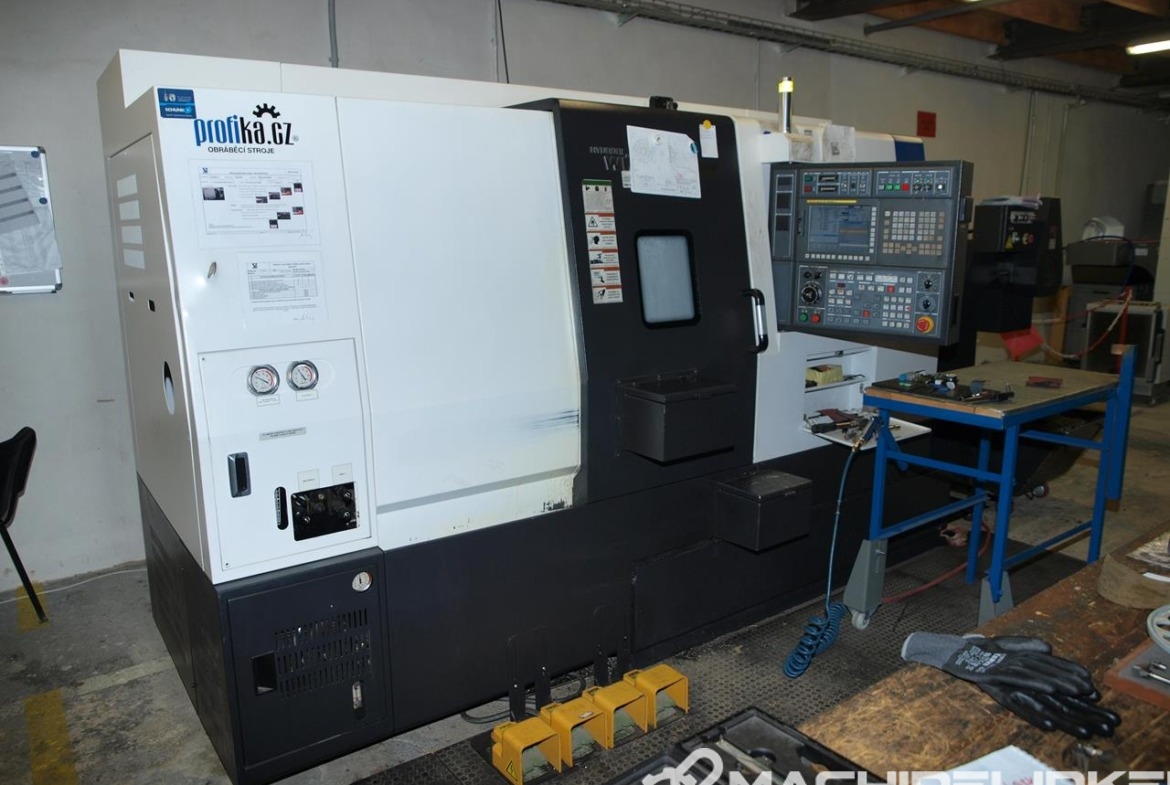

Machine type CNC lathe
-
Manufacturer HYUNDAI WIA
-
Model L200SY
-
Year of manufacture 2014
-
Condition Used
-
Detailed condition Good (used)
-
Rental? No
Description
Manufacturer: HYUNDAI WIA
Model: L200SY
Year: 2014
Condition: Used
Stock Number: 4923

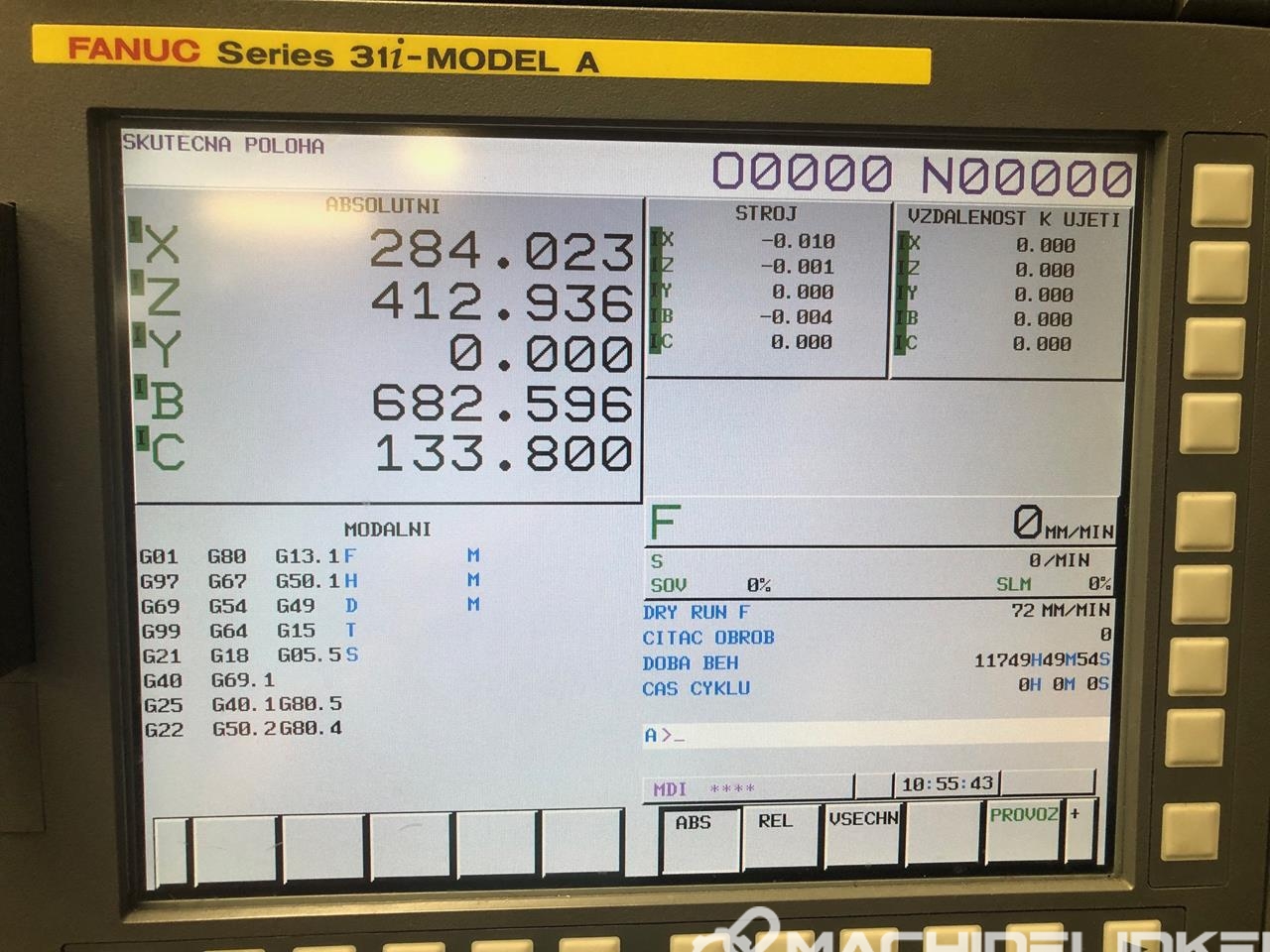

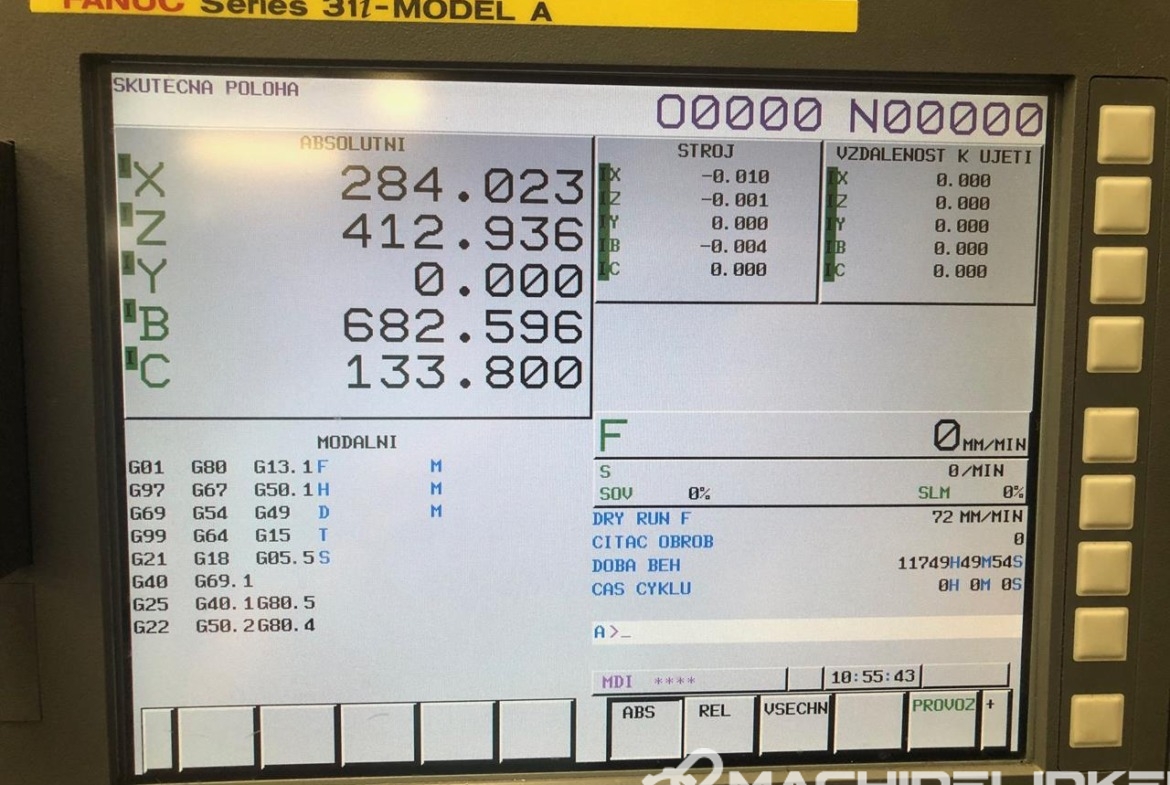

Control system: FANUC Series 31i Model A
Total hours: 11750 h
Maximum turning diameter: 550 mm
Maximum-turning length: 530 mm
Maximum travel length in the X-axis: 220 mm
Maximum spindle speed: 4000 / 6000 1 / min
Max. turning diameter: 240 mm
Grinding diameter: 550 mm
Spindle diameter: 65 mm

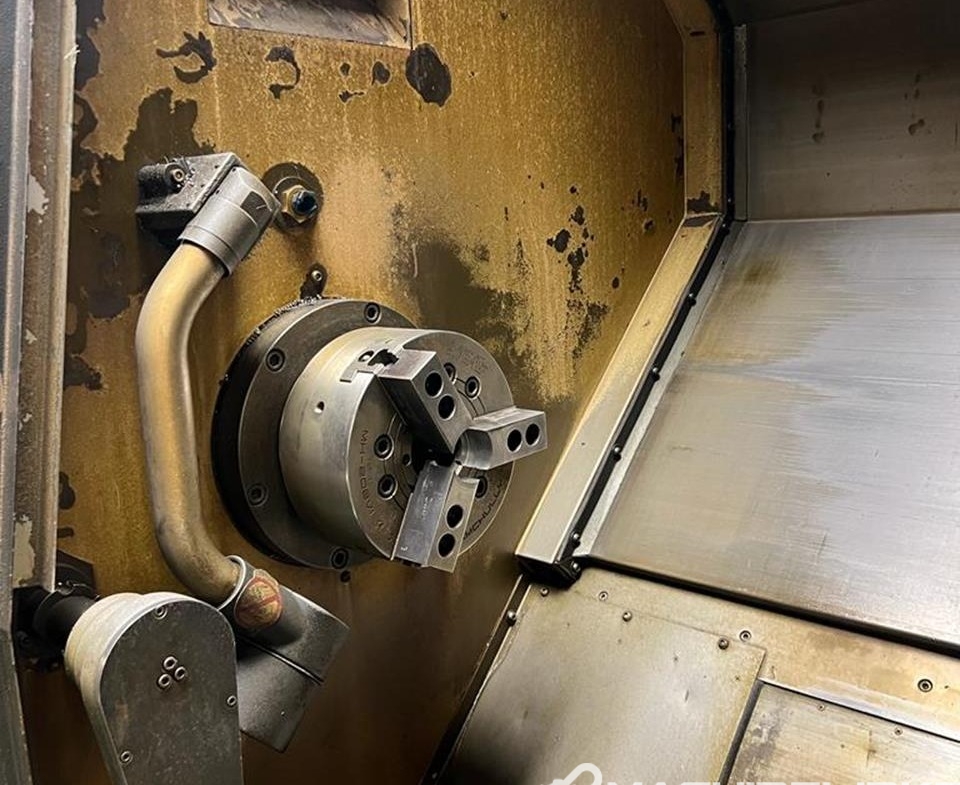

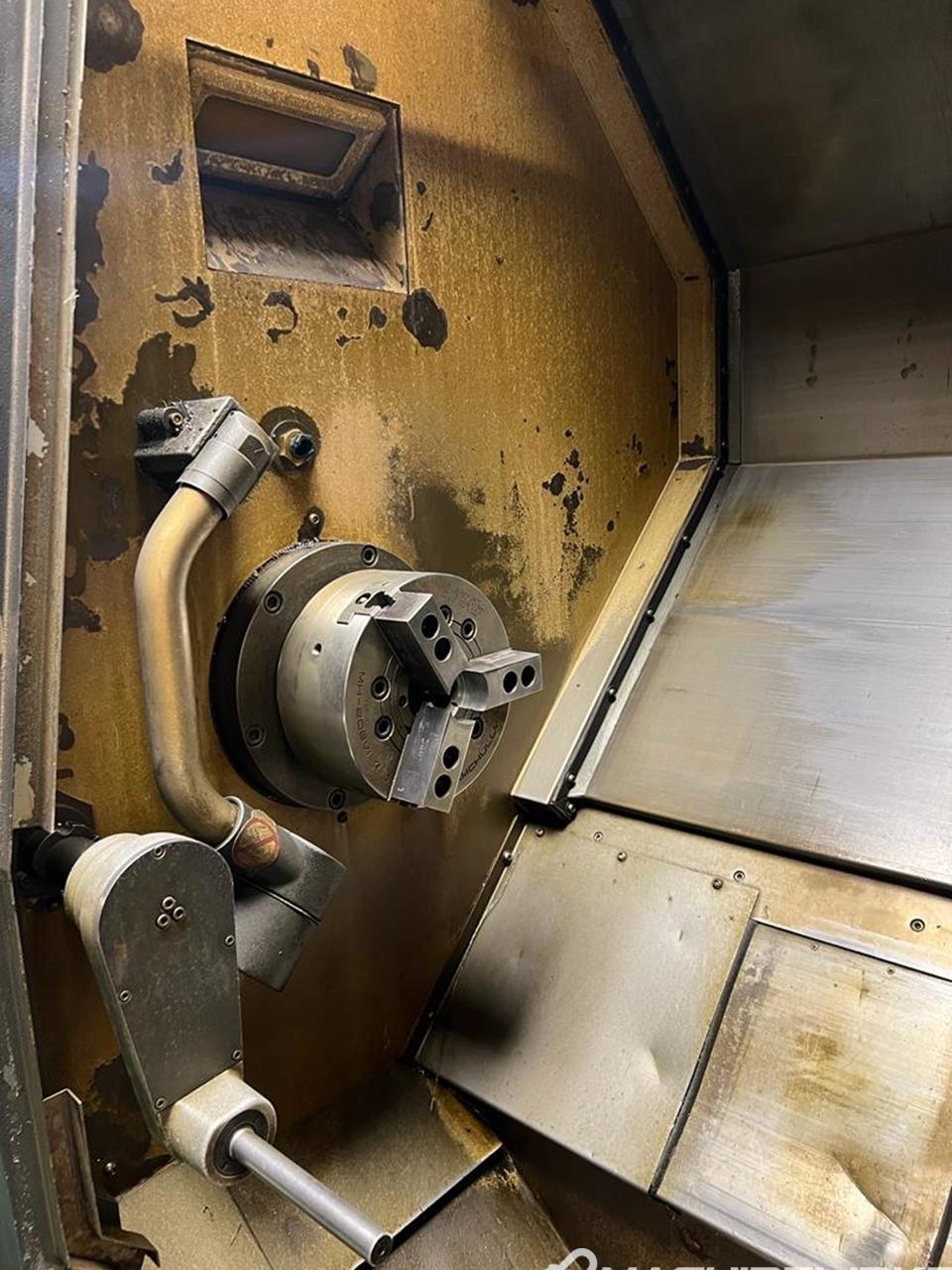

Chuck diameter: 210 mm
Maximum travel length in the ZB-axis: 720 mm
Maximum travel length in the Y-axis: +-40 mm
Maximum number of tools: 12 pcs
High-pressure cooling: 14.5 bar
Subspindle power: 3.7 / 2.2 kW
Power of the spindle drive: 15 / 11 kW
Length: 3045 mm
Width: 1707 mm
Height: 2021 mm
Weight: 4600 kg
2019: chuck and tool probe replacement
Equipment:

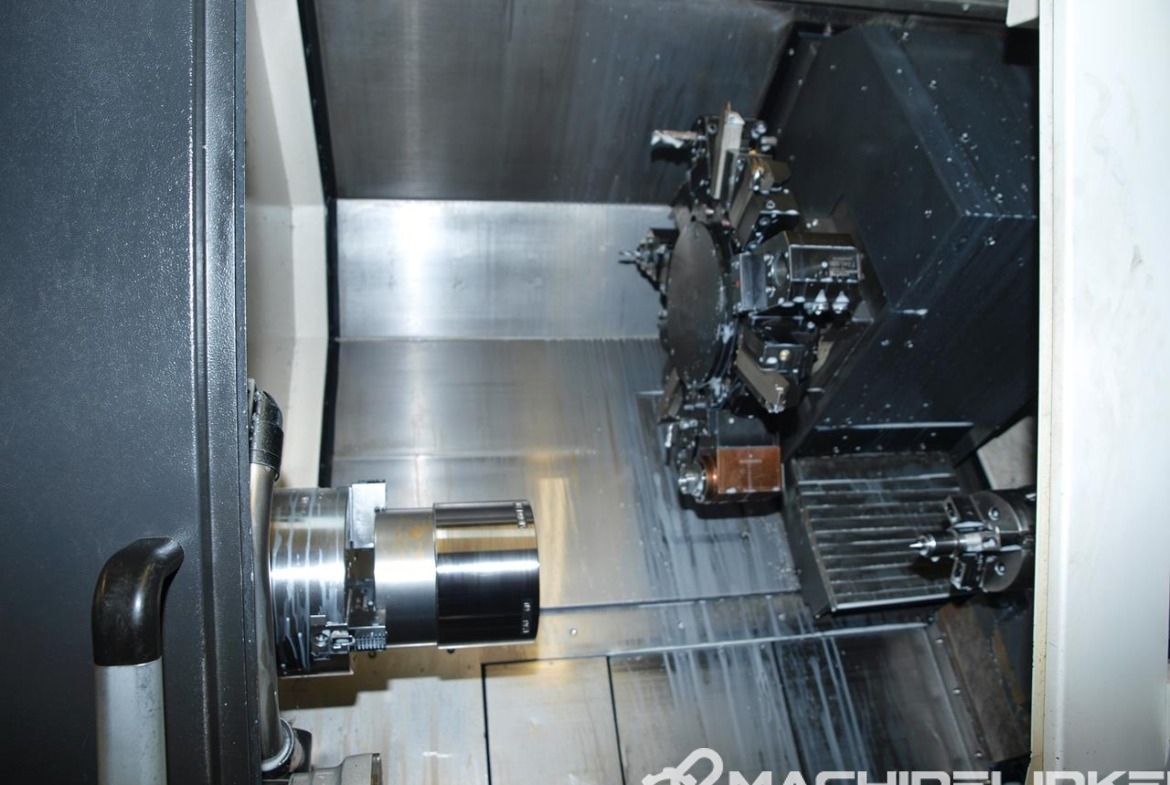

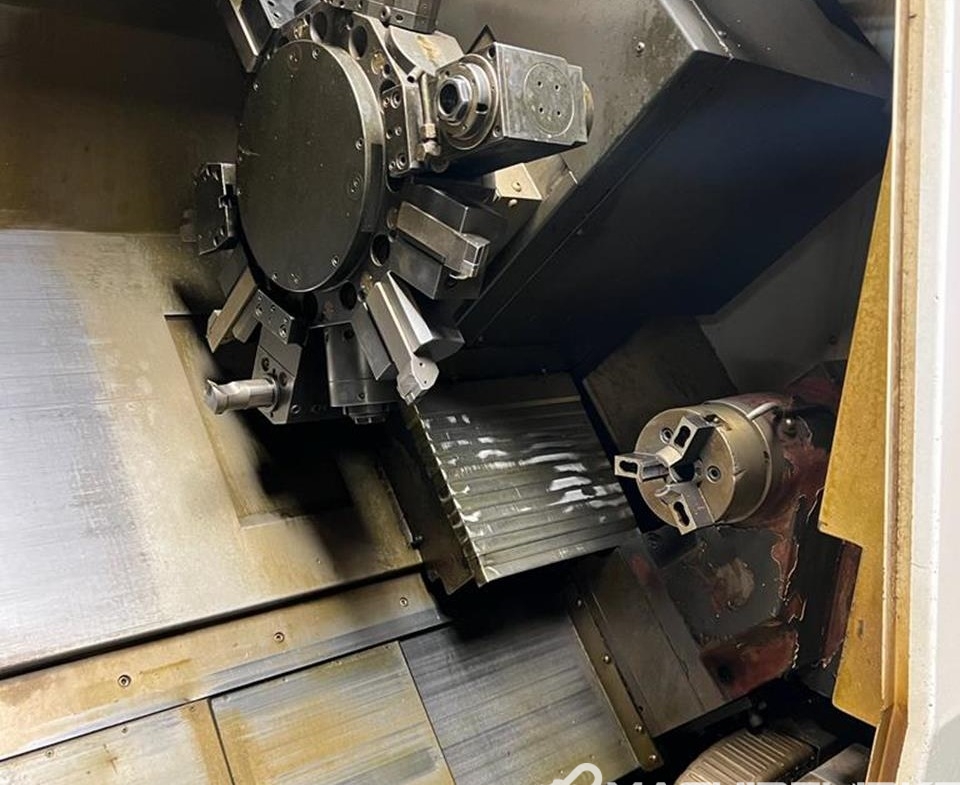

8 tool holders
4x Driven Tool
Reduction sleeves of the inner holder
