Details
-
Machine ID ML-29820
-
Category Machining centers (universal)
-
Machine type Machining center (universal)
-
Manufacturer Tongtai
-
Model Topper TMV-510T
-
Year of manufacture 2008
-
Condition Used
-
Detailed condition Good (used)
-
Rental? No
Description
Catalog No. : 8503
Type: Topper TMV-510T
Producer: Tongtai
Made in: 2008
Characteristic:
Control system: Fanuc 0i-MF Plus

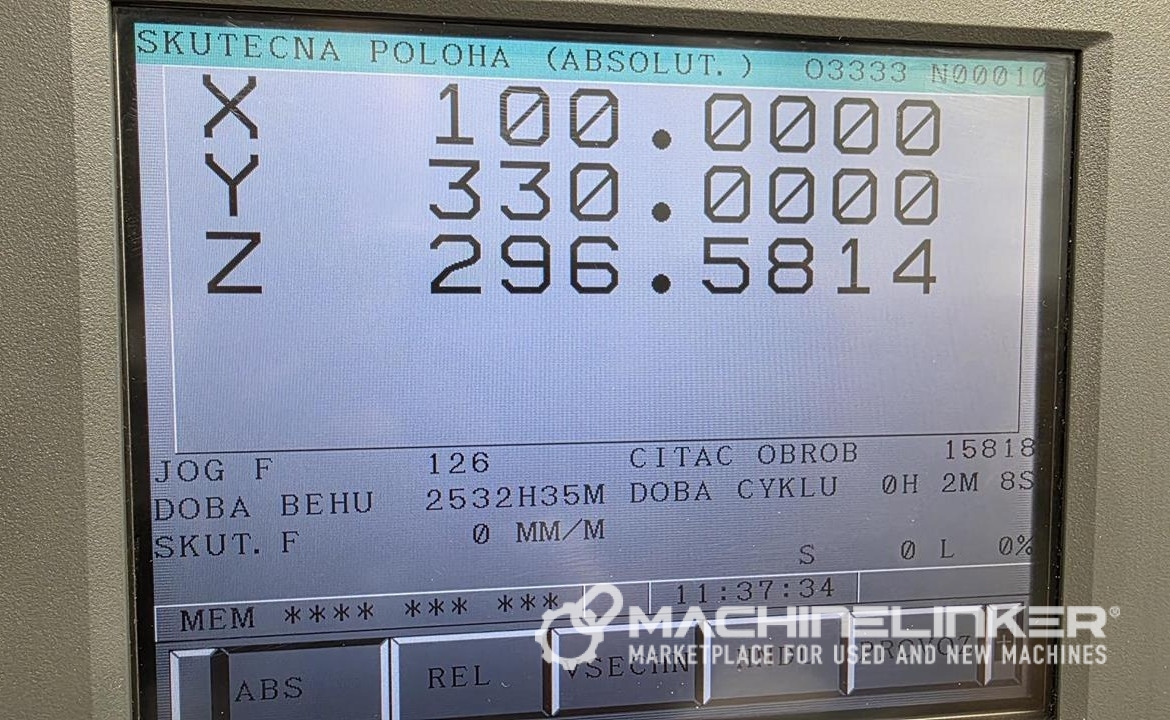

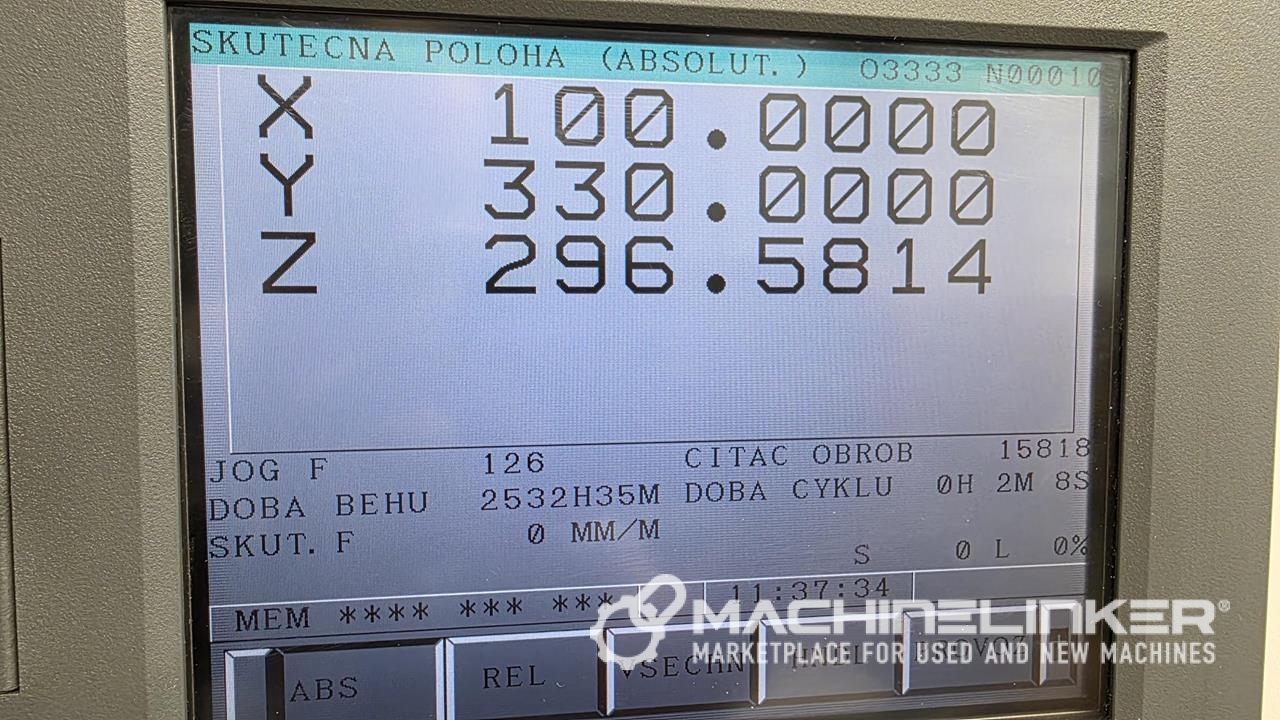

Hours on: 2532 h
Length of the working table: 600 mm
Width of the working table: 360 mm
X-Axis travels: 510 mm
Y-Axis travels: 360 mm
Z-Axis travels: 300 mm
Block speed: 8000 1/min
Power of the spindle: 5.5 kW
Taper: BT-30
Maximum number of tools: 20 pcs
Number of axes: 5 pcs
Rapid traverse X/Y/Z: 48 m/min
Machine height: 2310 mm
Machine length: 2700 mm
Machine width: 1600 mm
Machine weight: 2000 kg
Equipment:

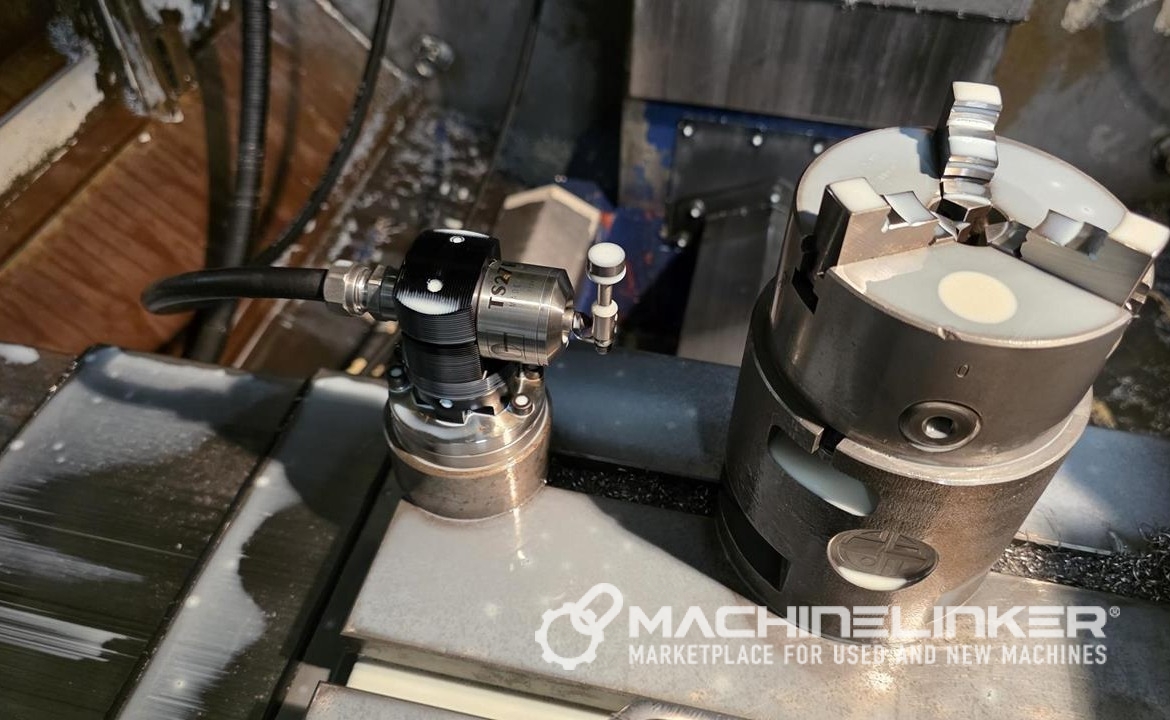

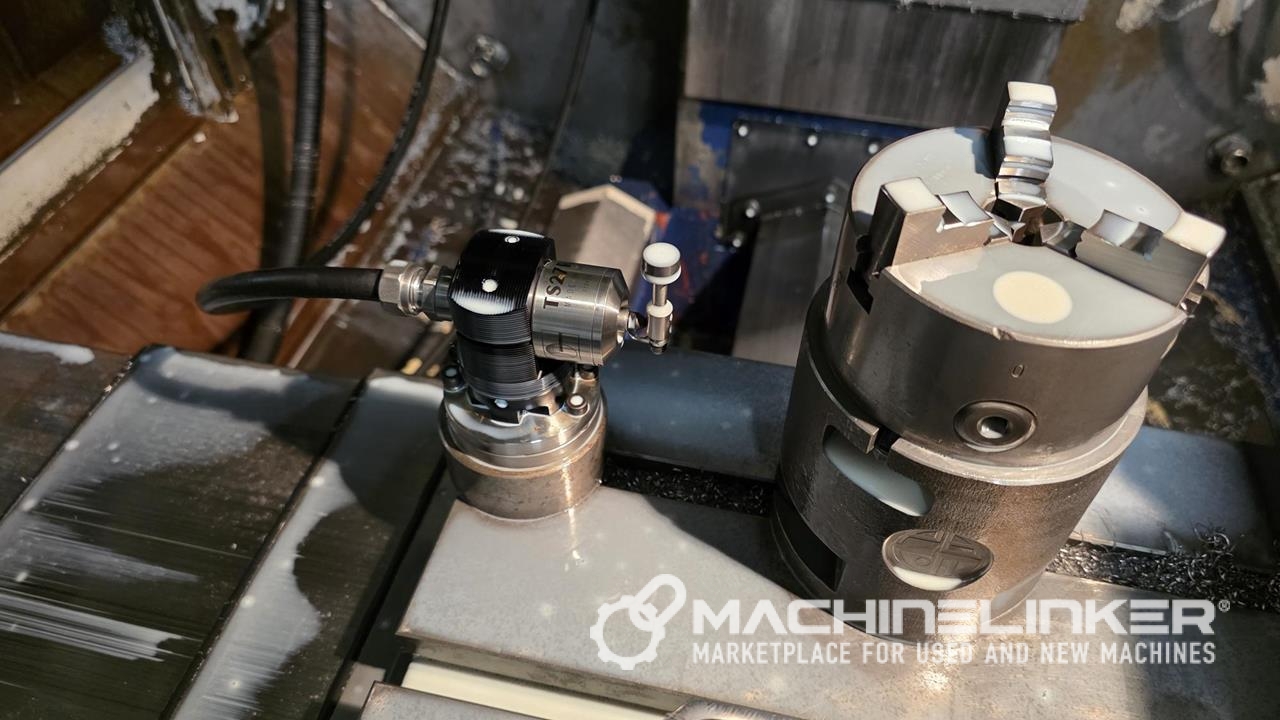

Tool probe Renishaw
Chuck

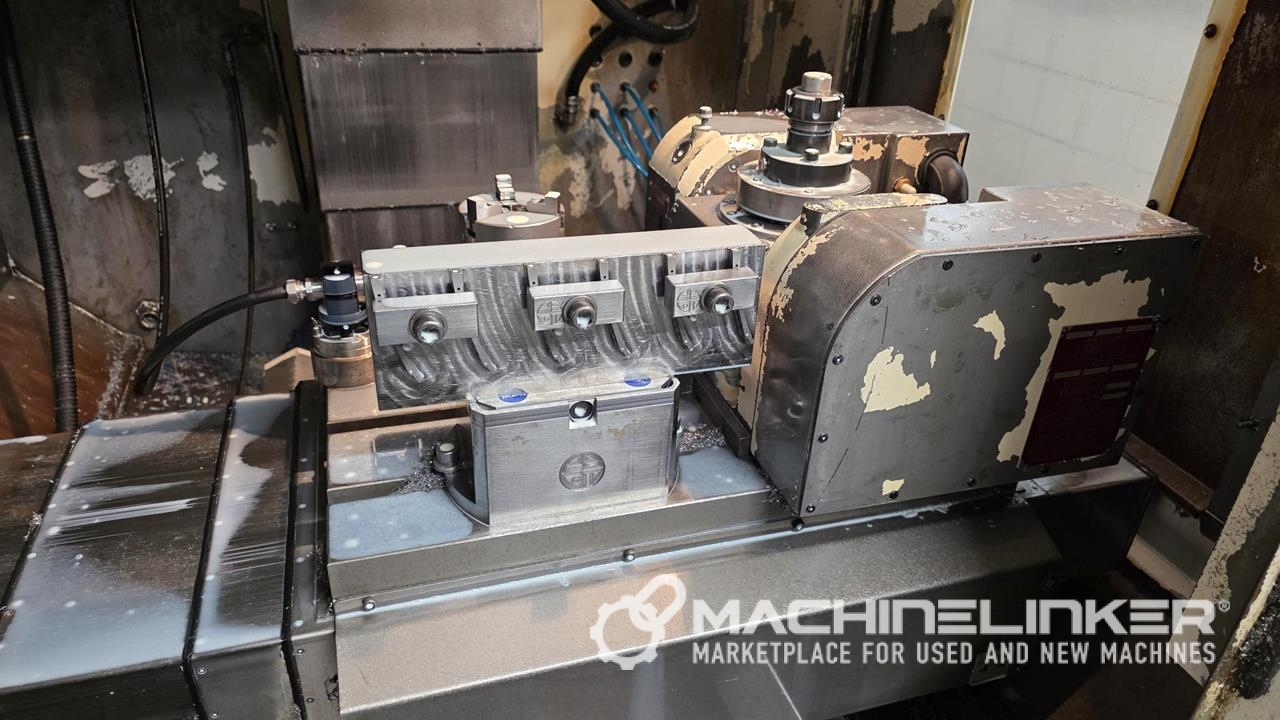

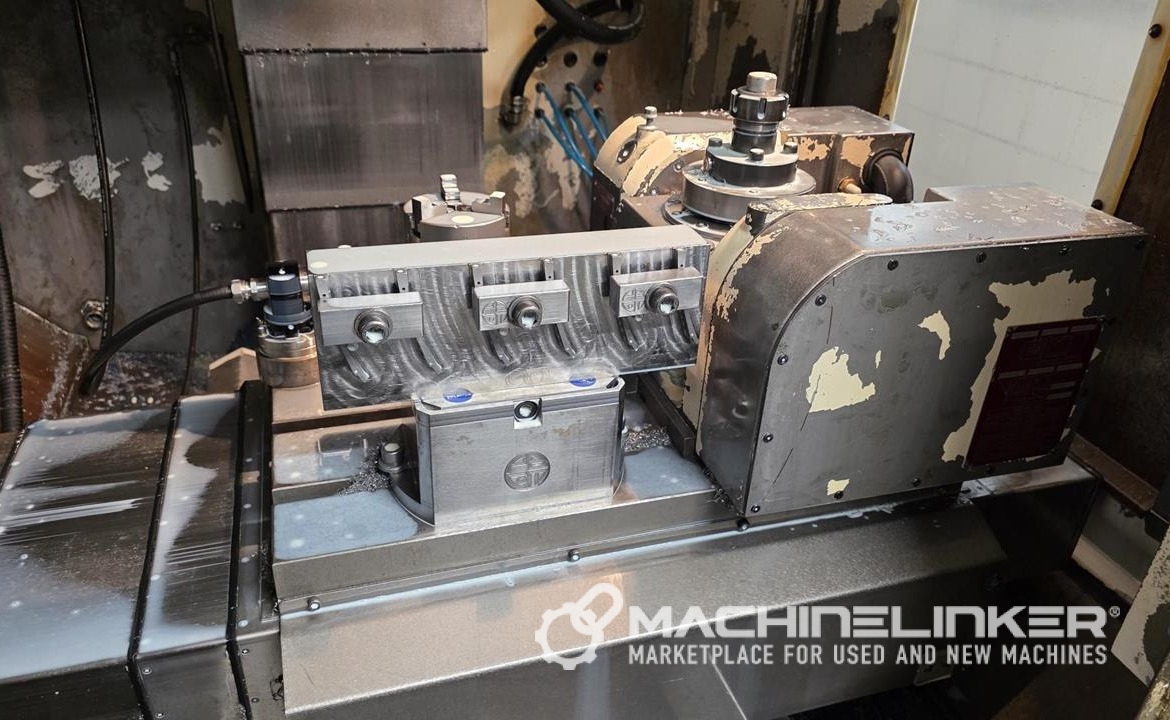

CNC controlled 5th axis TSUDAKOMA TN-101
Type: Topper TMV-510T
Producer: Tongtai
Made in: 2008
Characteristic:
Control system: Fanuc 0i-MF Plus
Hours on: 2532 h
Length of the working table: 600 mm
Width of the working table: 360 mm
X-Axis travels: 510 mm
Y-Axis travels: 360 mm
Z-Axis travels: 300 mm
Block speed: 8000 1/min
Power of the spindle: 5.5 kW
Taper: BT-30
Maximum number of tools: 20 pcs
Number of axes: 5 pcs
Rapid traverse X/Y/Z: 48 m/min
Machine height: 2310 mm
Machine length: 2700 mm
Machine width: 1600 mm
Machine weight: 2000 kg
Equipment:
Tool probe Renishaw
Chuck
CNC controlled 5th axis TSUDAKOMA TN-101
Machine location
Open on Google Maps-
Address: 683/3 Kobližná
-
City: Brno
-
Zip/Postal code: 60200
-
Country: Czech Republic
