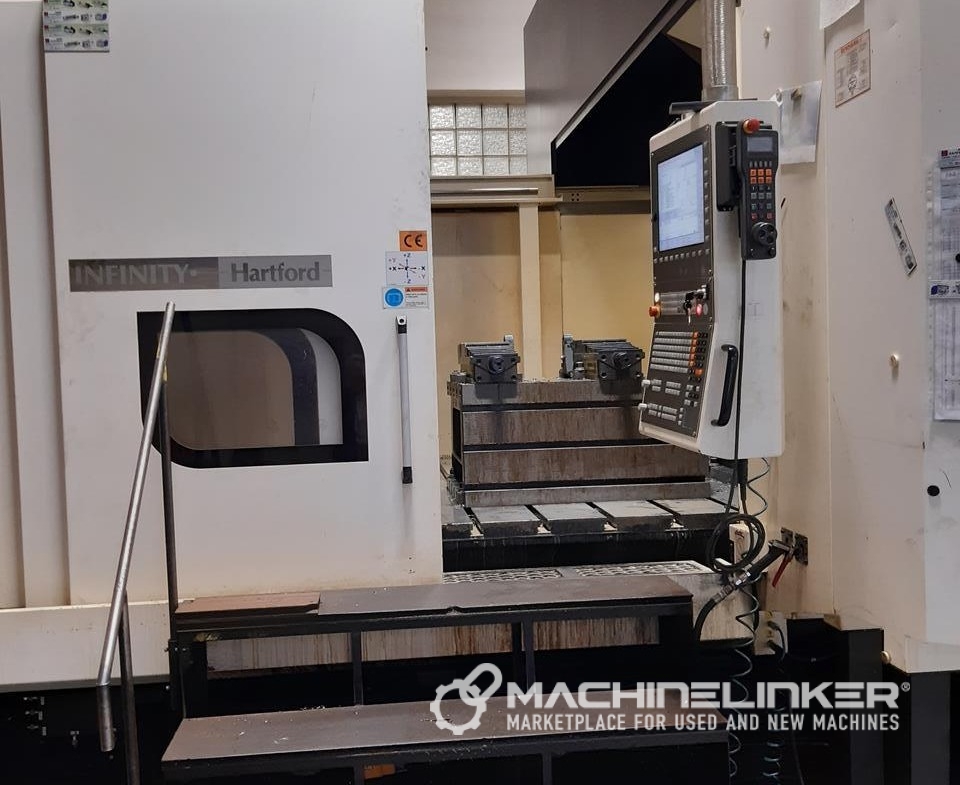

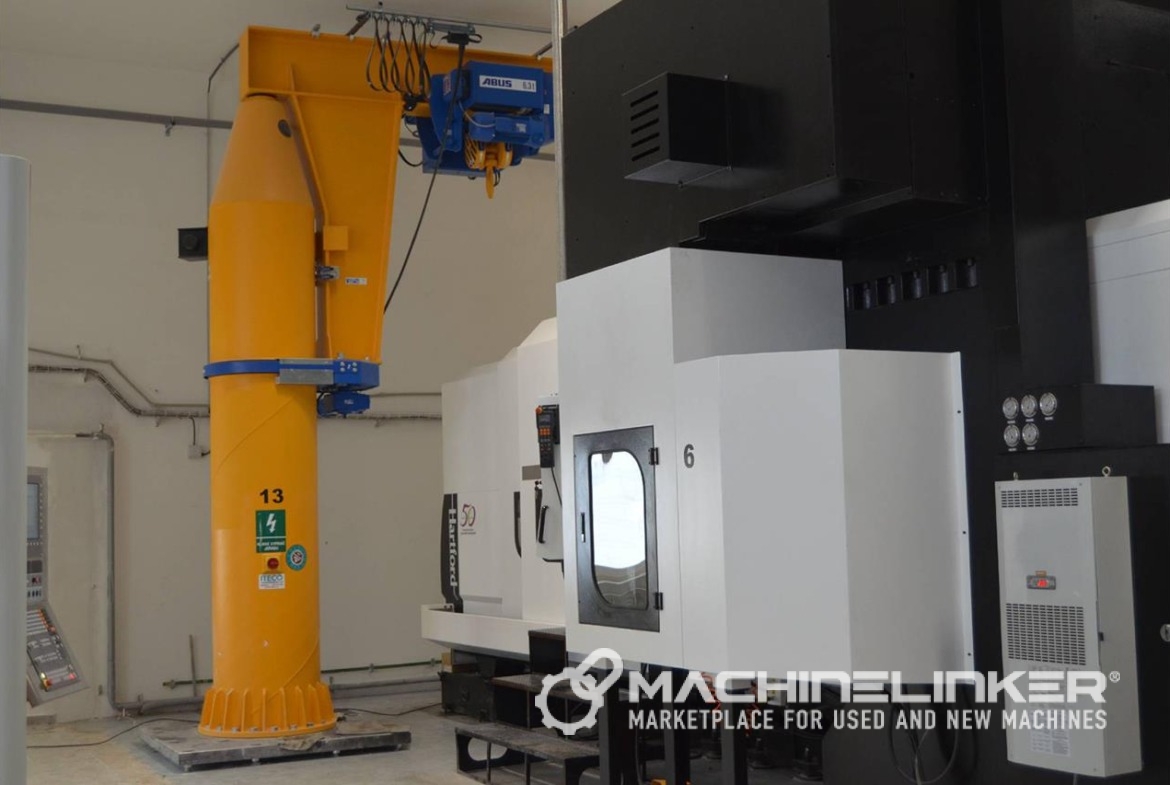

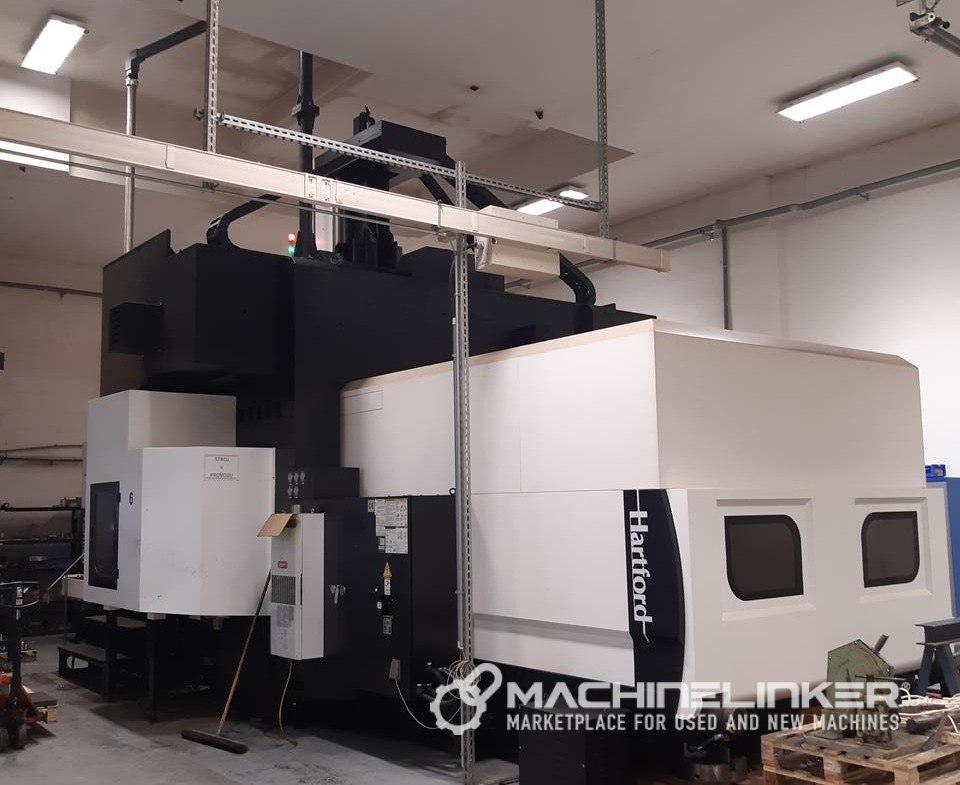

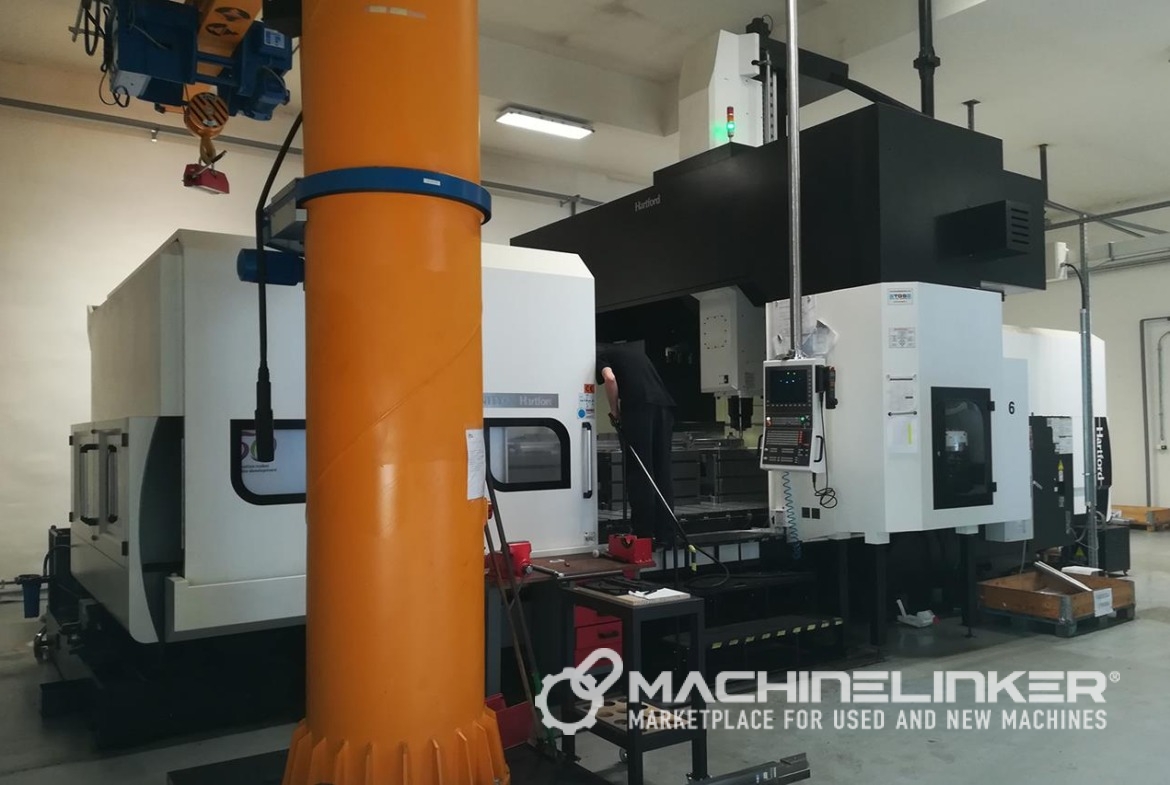

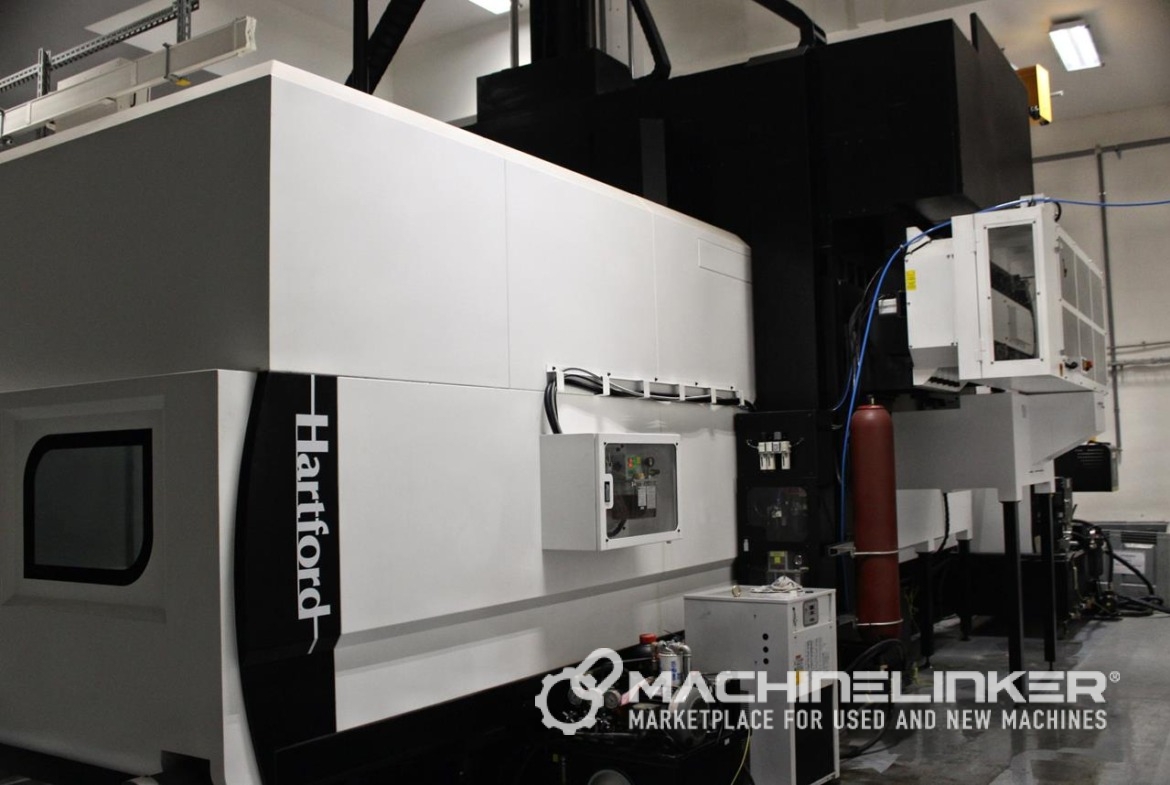

Hartford HSA – 428EA
Details
-
Machine ID ML-28415
-
Machine type Portal machining center
-
Manufacturer Hartford
-
Model HSA – 428EA
-
Year of manufacture 2015
-
Detailed condition Good (used)
-
Rental? No
Description
Catalog No. : 5441
Type: HSA – 428EA
Producer: Hartford
Made in: 2015
Characteristic:
Control system: Heidenhain 530iHSCI
Total hours: 14613 h
Hours on: 5484 h
Length of the working table: 4000 mm
Width of the working table: 2500 mm
Maximum table load (evenly distributed): 18000 kg
Power of the spindle drive: 26 kW
Maximum distance of the spindle from the table: 2800 mm
X-Axis travels: 4000 mm
Y-Axis travels: 2800 mm
Z-Axis travels: 1400 mm
Number of axis: 5 pcs
Maximum rotary speed of the vertical spindle: 6000 1/min
Maximum feed rate in X-axis: 10000 mm/min
Maximum feed rate in Y-axis: 10000 mm/min
Maximum feed rate in Z-axis: 10000 mm/min
Taper: ISO 50
Maximum number of tools: 32 pcs
Rapid traverse X/Y/Z: 16000/20000/15000 mm/min
Max. tool weight: 15 kg
Coolant tank: 400 l
Machine height: 6415 mm
Machine length: 13000 mm
Machine width: 7300 mm
Machine weight: 44000 kg
Equipment:
Technical books
Chip conveyor
Hand wheel
Spindle head
Spindle extension
Angle head HF-AU H265 and Extended head H228
Head positioning in five degree
Internal cooling 40 bar
Probe Renishaw RMP60 ( Q ) ISO50
Type: HSA – 428EA
Producer: Hartford
Made in: 2015
Characteristic:
Control system: Heidenhain 530iHSCI
Total hours: 14613 h
Hours on: 5484 h
Length of the working table: 4000 mm
Width of the working table: 2500 mm
Maximum table load (evenly distributed): 18000 kg
Power of the spindle drive: 26 kW
Maximum distance of the spindle from the table: 2800 mm
X-Axis travels: 4000 mm
Y-Axis travels: 2800 mm
Z-Axis travels: 1400 mm
Number of axis: 5 pcs
Maximum rotary speed of the vertical spindle: 6000 1/min
Maximum feed rate in X-axis: 10000 mm/min
Maximum feed rate in Y-axis: 10000 mm/min
Maximum feed rate in Z-axis: 10000 mm/min
Taper: ISO 50
Maximum number of tools: 32 pcs
Rapid traverse X/Y/Z: 16000/20000/15000 mm/min
Max. tool weight: 15 kg
Coolant tank: 400 l
Machine height: 6415 mm
Machine length: 13000 mm
Machine width: 7300 mm
Machine weight: 44000 kg
Equipment:
Technical books
Chip conveyor
Hand wheel
Spindle head
Spindle extension
Angle head HF-AU H265 and Extended head H228
Head positioning in five degree
Internal cooling 40 bar
Probe Renishaw RMP60 ( Q ) ISO50
Machine location
-
City: Brno
-
Country: Czech Republic
