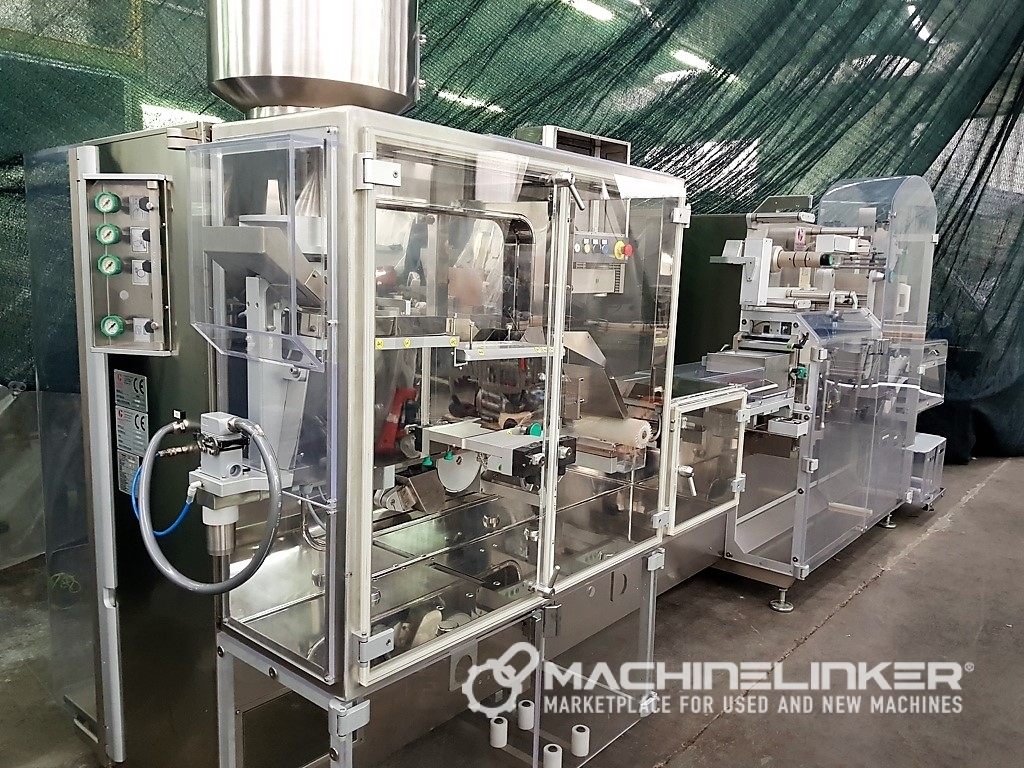

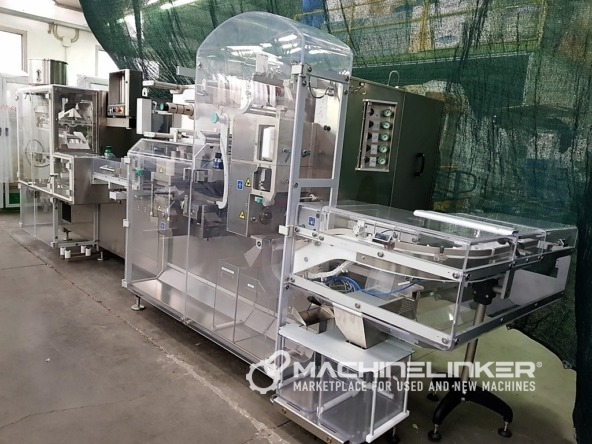

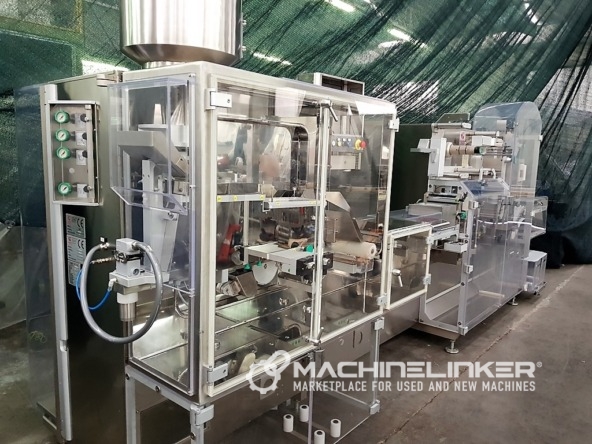

Marchesini MB 430

The unit is suitable to pack blisters in PVC + Aluminum, Aluminum + Aluminum, Polypropylene, PET and PVC, Aclar, COC.

All the stations are remarkably easy to access and all the movements are fully visible, so that the line is very easy to clean.

This machine is equipped with various safety devices to protect the operator. Product parameters can be recalled from a PC, for a quick and easy format change. Reel unwinder driven by a Brushless motor, with automatic machine stop at reel end.

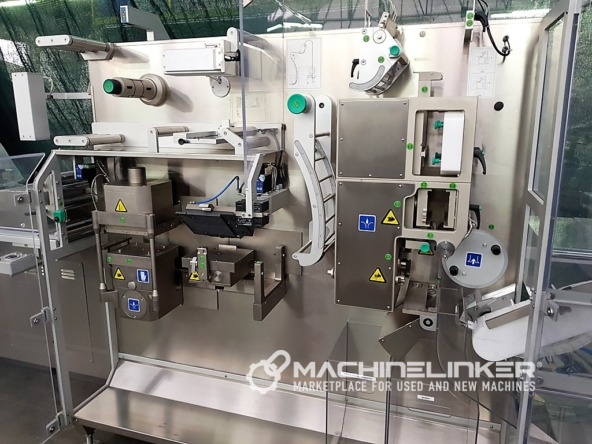

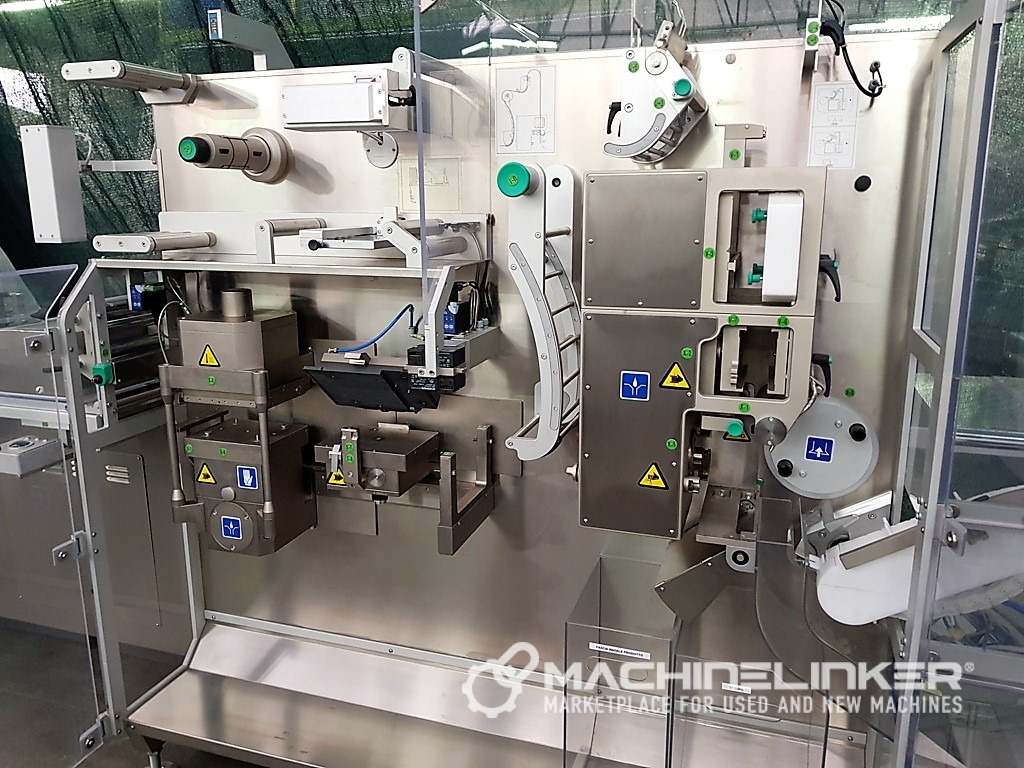

Film splicing table equipped with integrated cutter, and automatic vacuum. Forming station entirely managed by Brushless motors. Self-aligning pre-heating plates, independently motorized. Film positioning driven by Brushless motor. Automatic Pitch adjustment directly from the display.

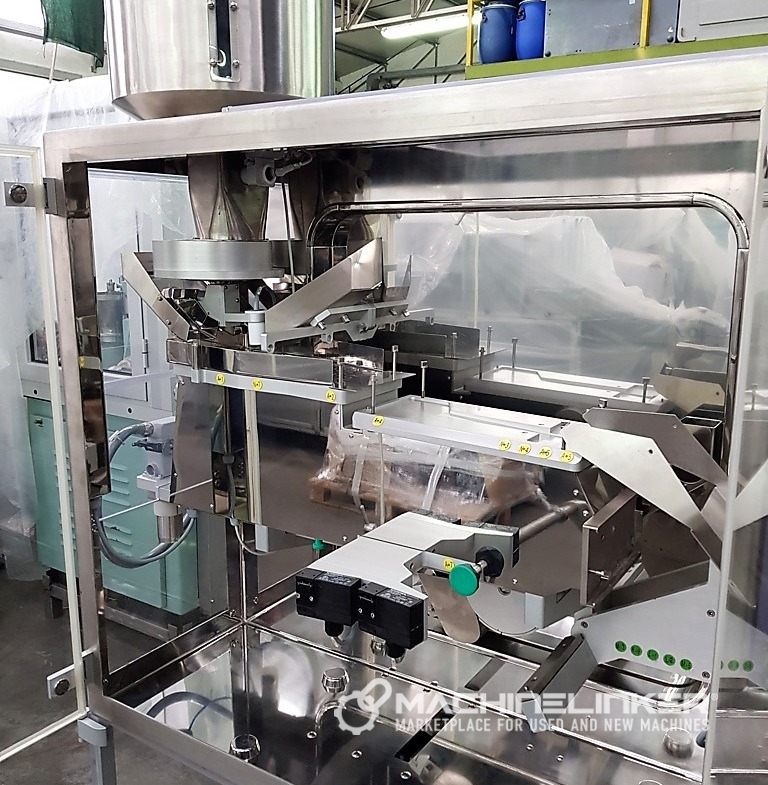

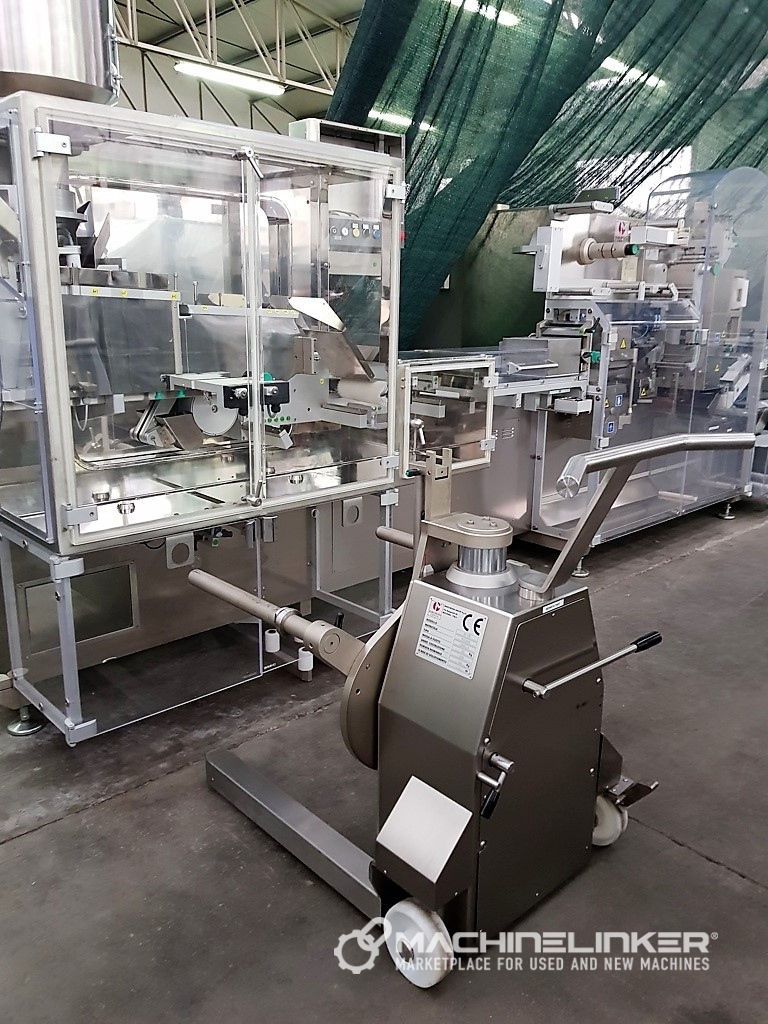

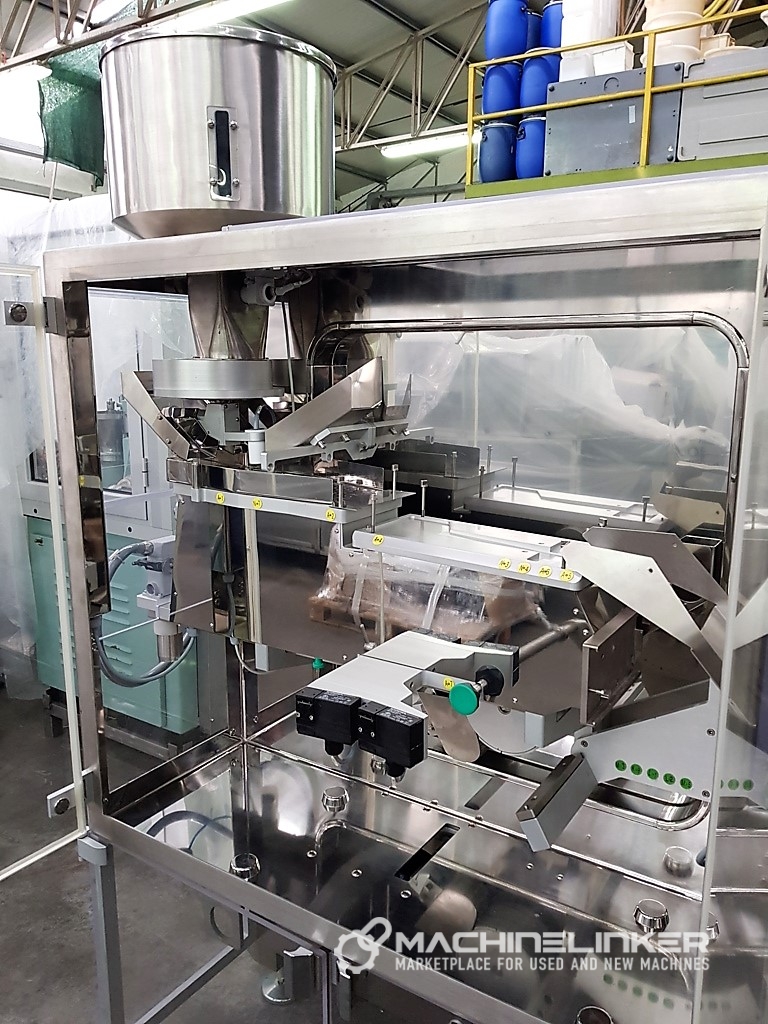

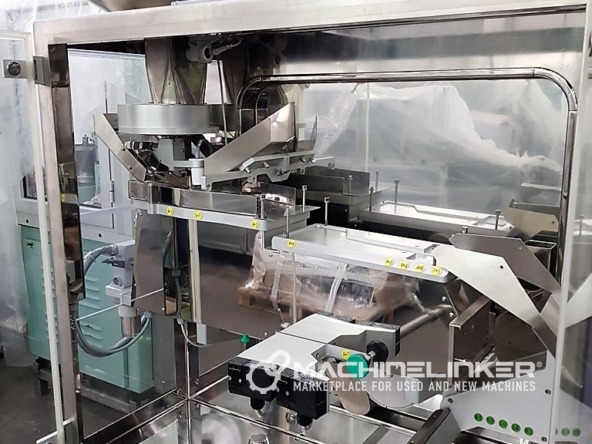

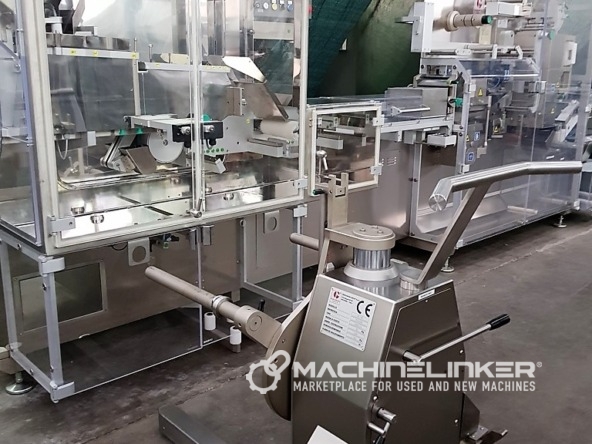

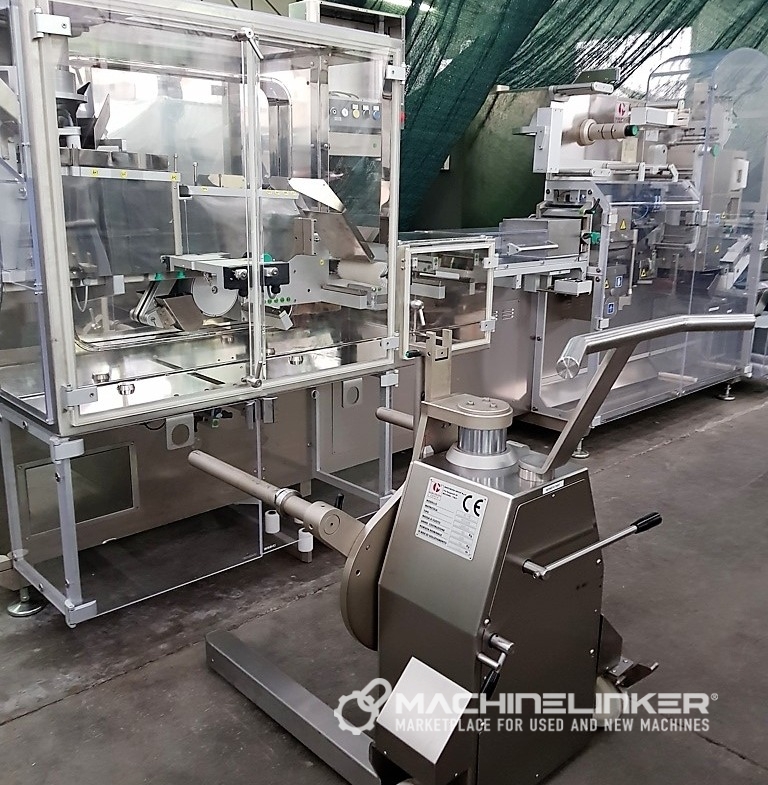

Loader trolley MS170 with a maximum load of 300 kg. Dedicated product feeder and relevant enclosure easily removable without disassembling any part. Innovative concept, guaranteeing great flexibility, cleaning and change over time significant reduction. This allows the operator to replace the complete assembly with a second one, previously set up for a different product, without removing single components (optional).

The multi-purpose trolley, available as an option, makes this procedure extremely fast and easy. Blister vision Harlequin Vision inspection system.

Technical data:

Length mm 4200

Width mm 1350

Height mm 1940

Net weight Kg 3600

Frequency Hz 50

Voltage Volt 400

Current A 46

Power absorbed Kw 3

Diam max reel thermo-material 600 mm

Diam max reel cover material 280 mm

Max forming depth 9,5 mm

Max cycles 95

Conveyor belt length 1380 mm
