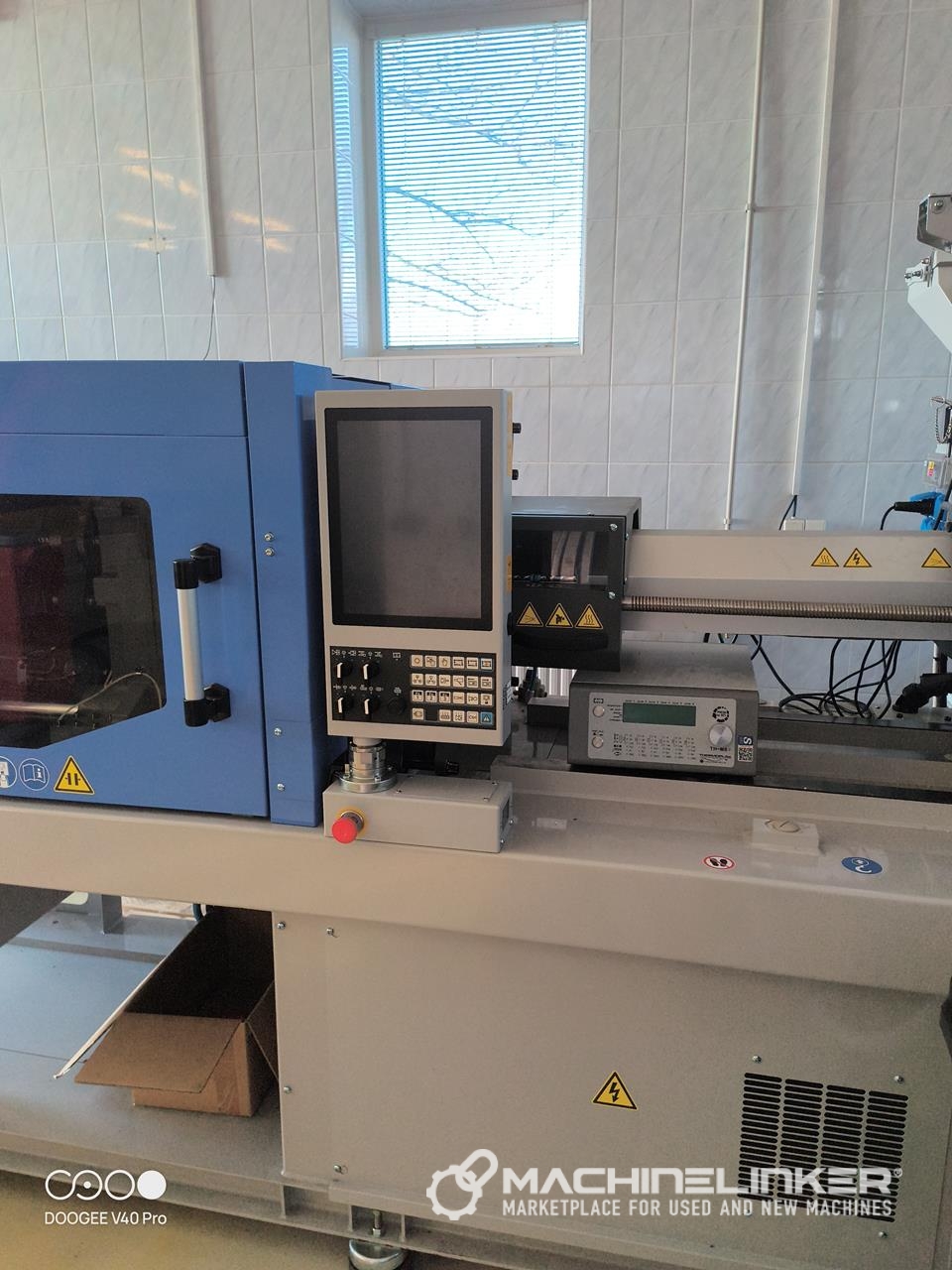

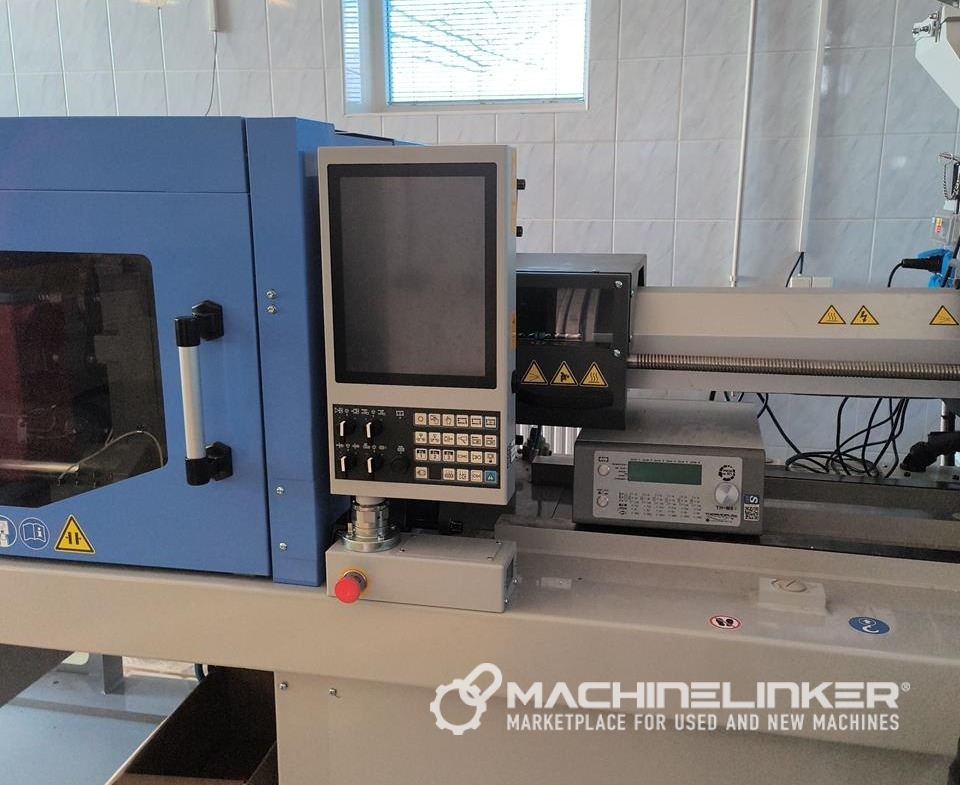

JSW J100ADS-180U 45

Details

Updated on July 11, 2025 at 9:14 am

Machine ID ML-30013
Category Injection molding (moulding) machines
Machine type Injection press
Manufacturer JSW
Model J100ADS-180U 45
Year of manufacture 2023
Condition Used
Detailed condition Good (used)
Rental? No

Description

Catalog No. : 8511
Type: J100ADS-180U 45
Producer: JSW
Made in: 2023
Characteristic:
Total number of shots: 6800
Hours on: 60 h
Plate dimensions: 630 x 630 mm
Closing force: 1000 kN
Screw diameter: 45 mm
Injection capacity: 223 cm³
Injection weight: 203 g
Maximum distance between the plates for mounting the mold: 910 mm
Distance between the columns (horizontal): 460 mm
Distance between the columns (vertical): 460 mm
Maximum injection pressure: 157 MPa
Opening the mold: 360 mm
Max. Speed: 400 mm
Machine length: 4950 mm
Machine width: 1230 mm
Machine height: 1670 mm
Weight of the injection molding machine: 4600 kg
Equipment:
Manuals
Spare parts

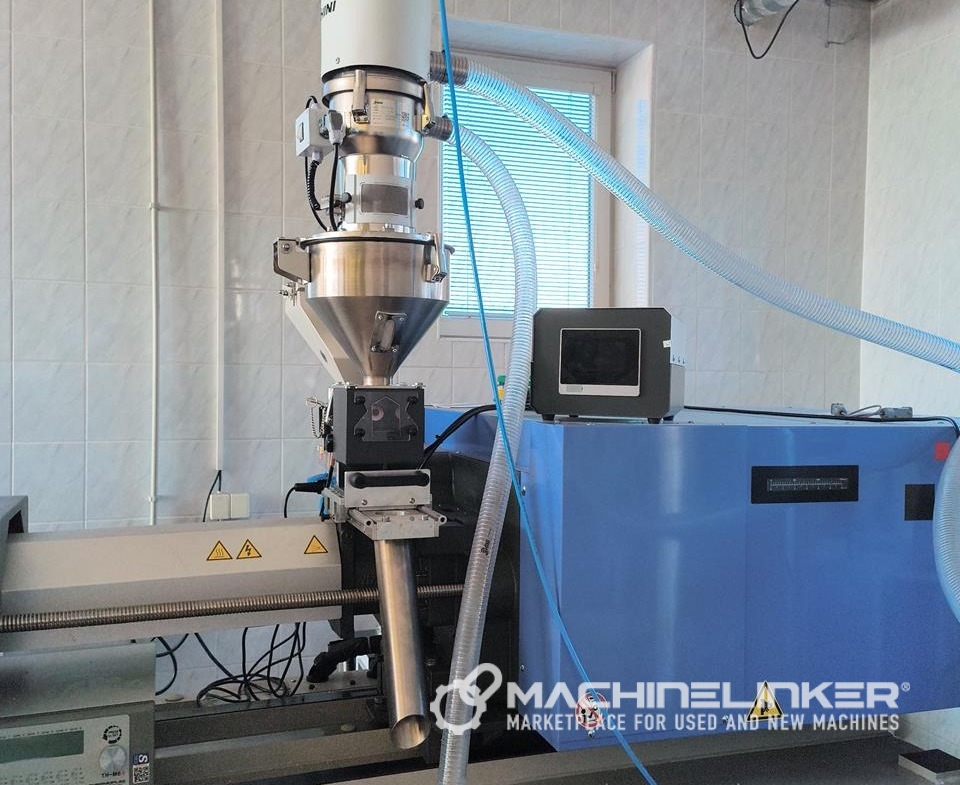

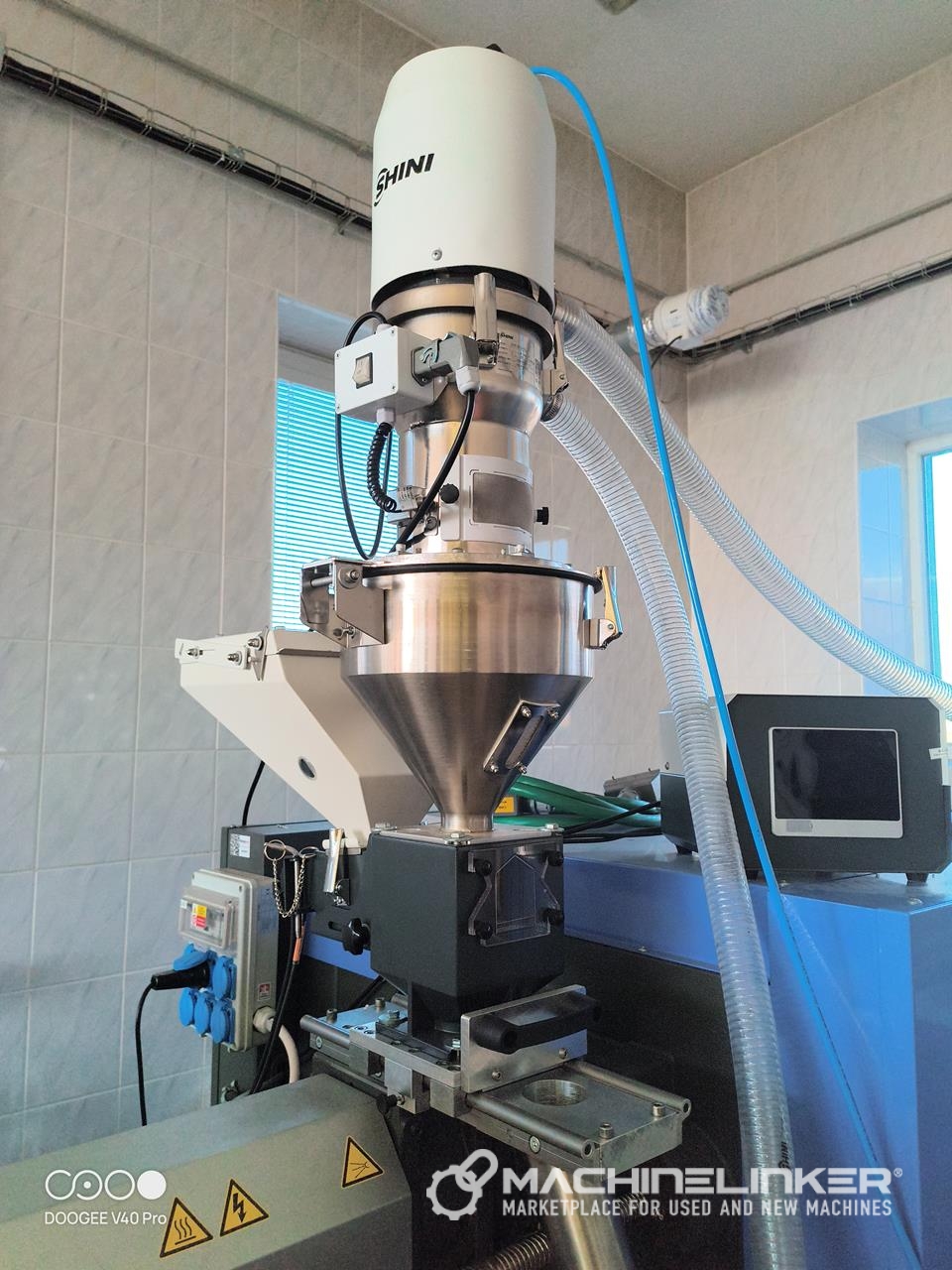

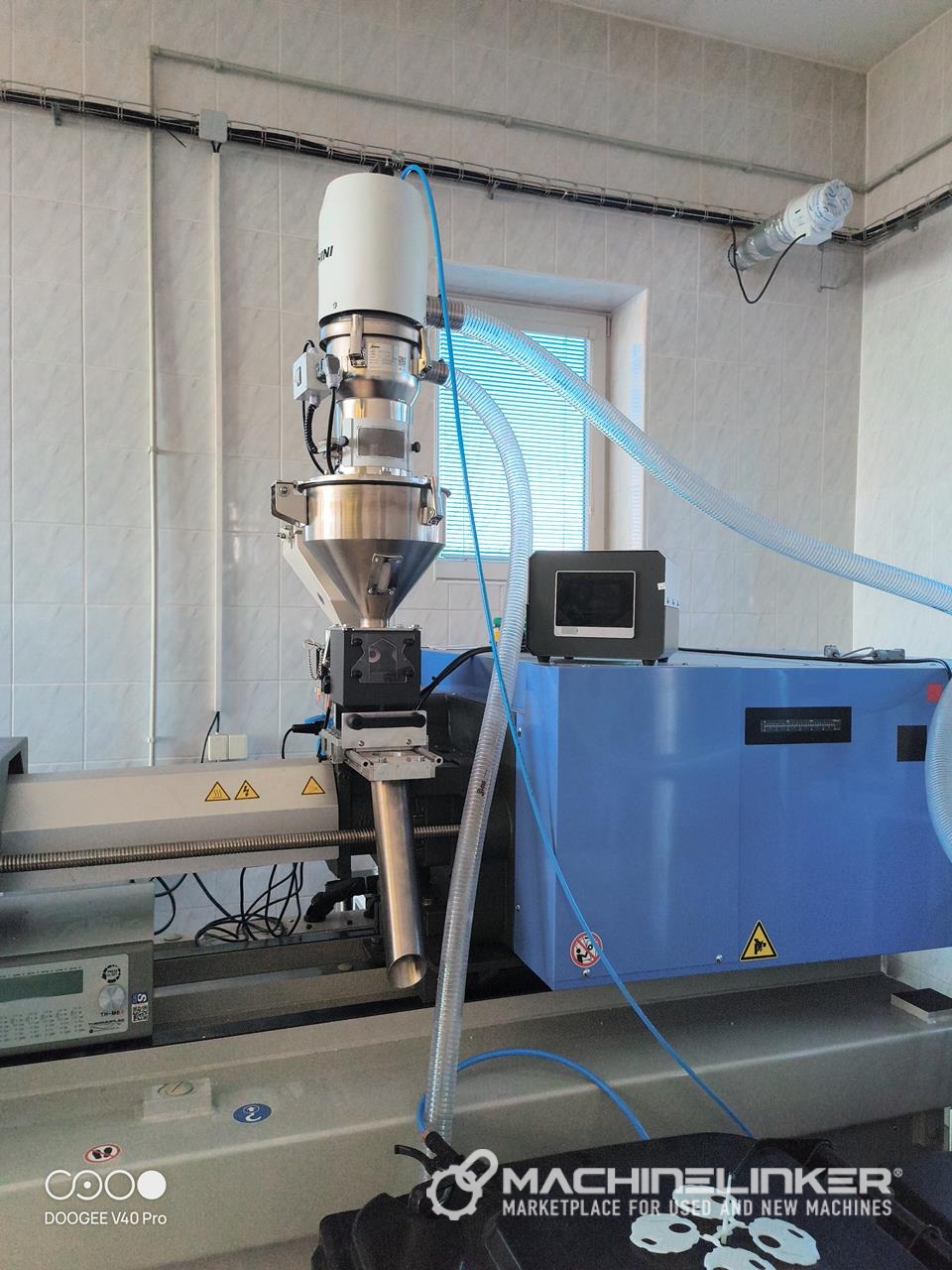

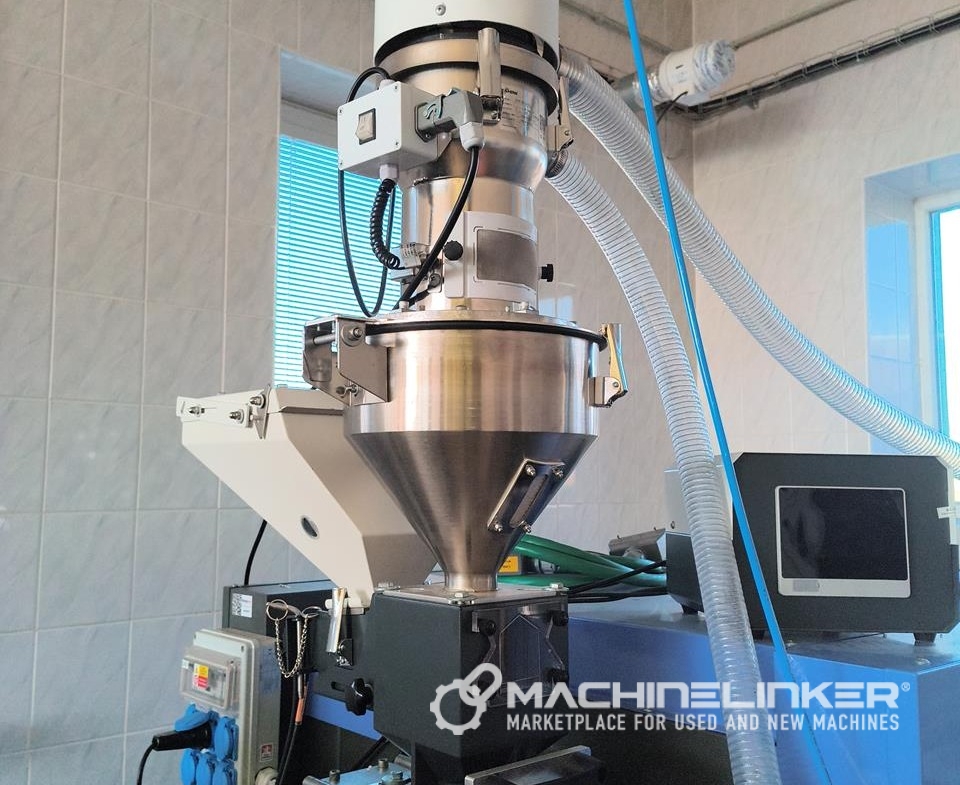

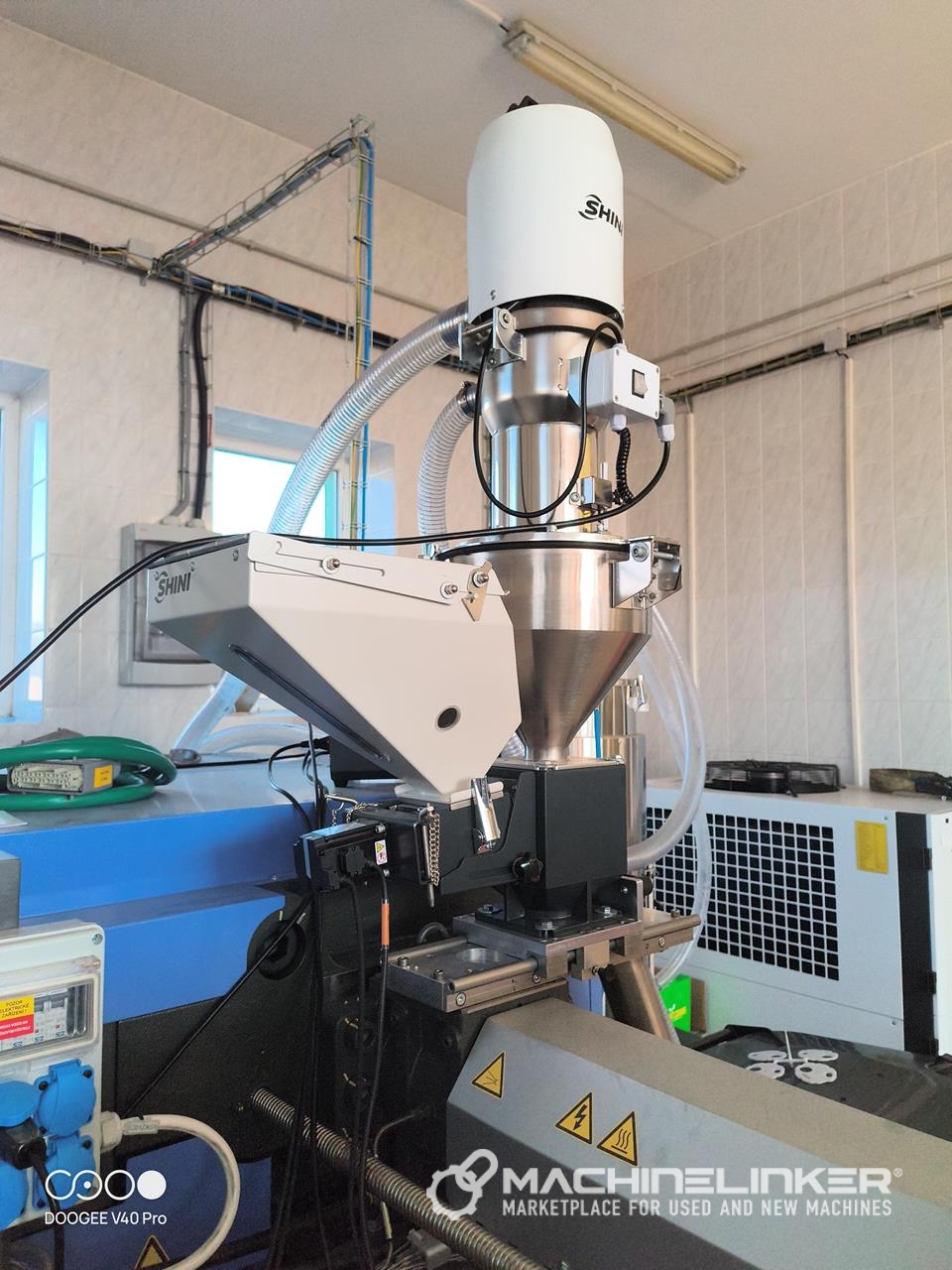

1x SHINI SAL-3U-CE aspirator
1x SHINI vacuum aspirator

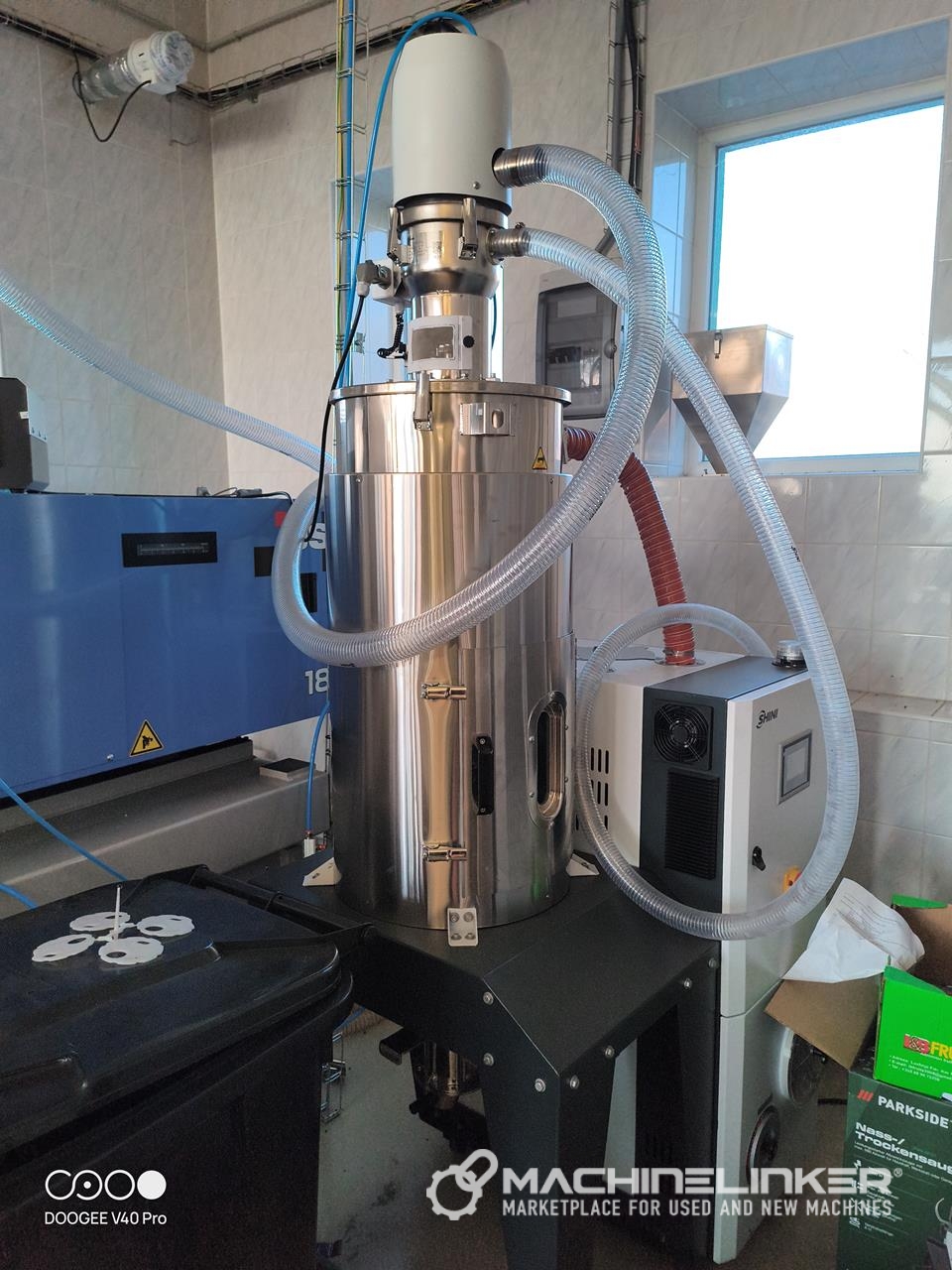

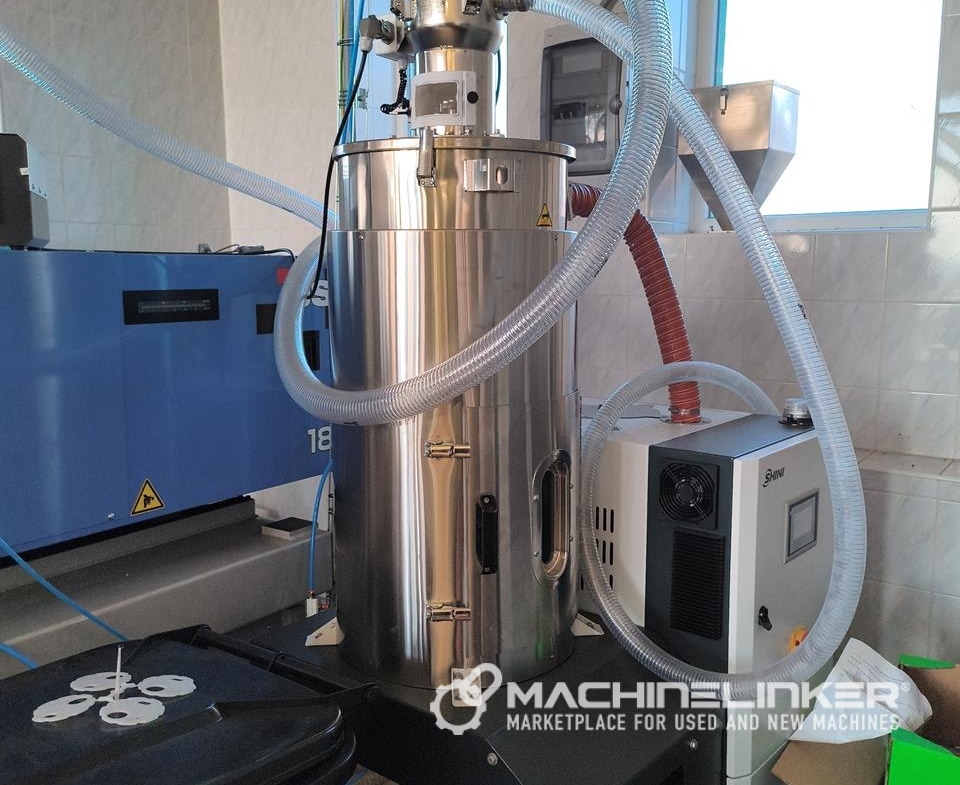

Molecular dryer SSD120U-80H
SHINI STM-607-W-CE Temperature Control Device
SHINI SIC-7.5A-R2 Cooling Device

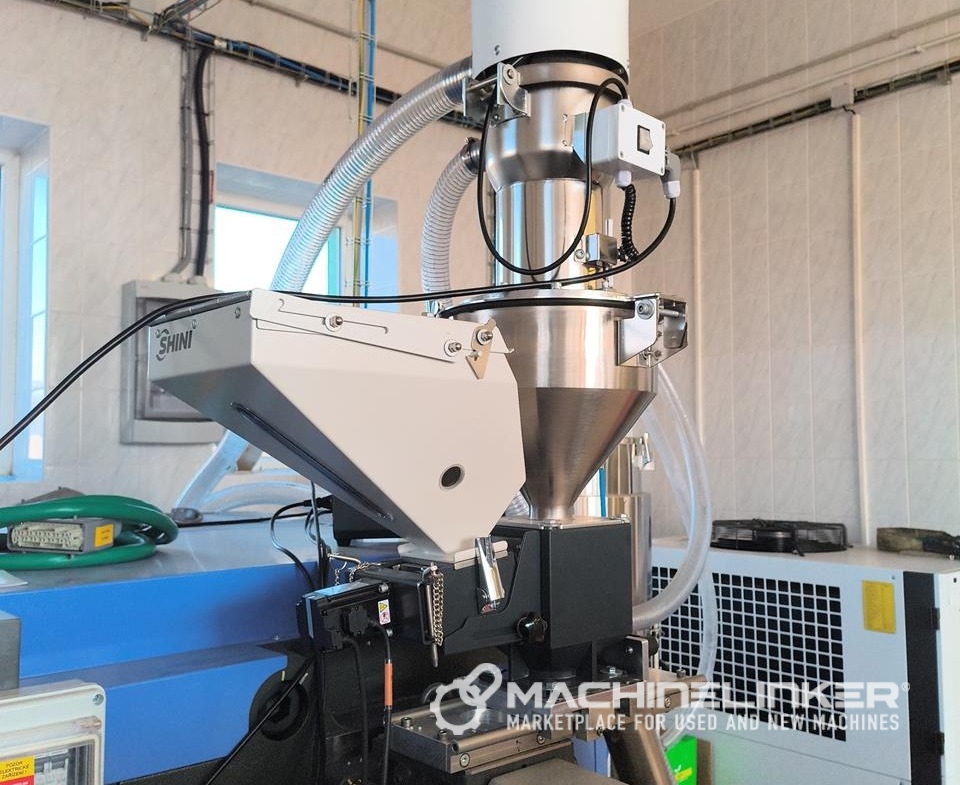

Dual dosing of SHINI SCM dye
