Details
Updated on June 5, 2025 at 1:38 pm-
Machine ID:
ML-29125 -
Category:
Machining centers (universal) - Machine type:
Machining Centre (Universal) - Manufacturer:
Pinnacle - Model:
BX900T -
Year of manufacture:
2019 -
Condition:
Used - Detailed condition:
Good (used) - Rental?:
No
Description
Catalog No. : 8434
Type: BX900T
Producer: Pinnacle
Made in: 2019
Characteristic:

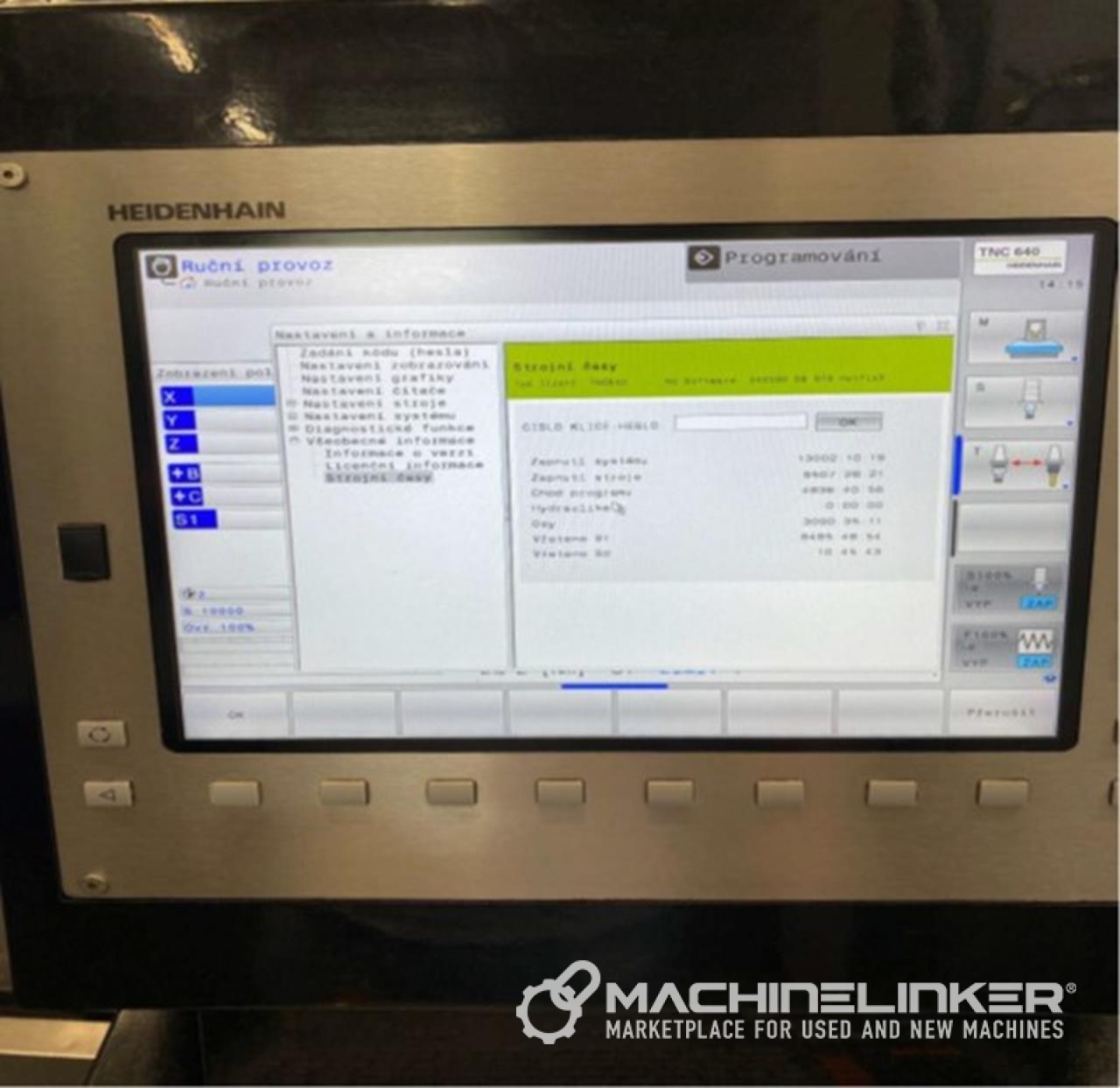

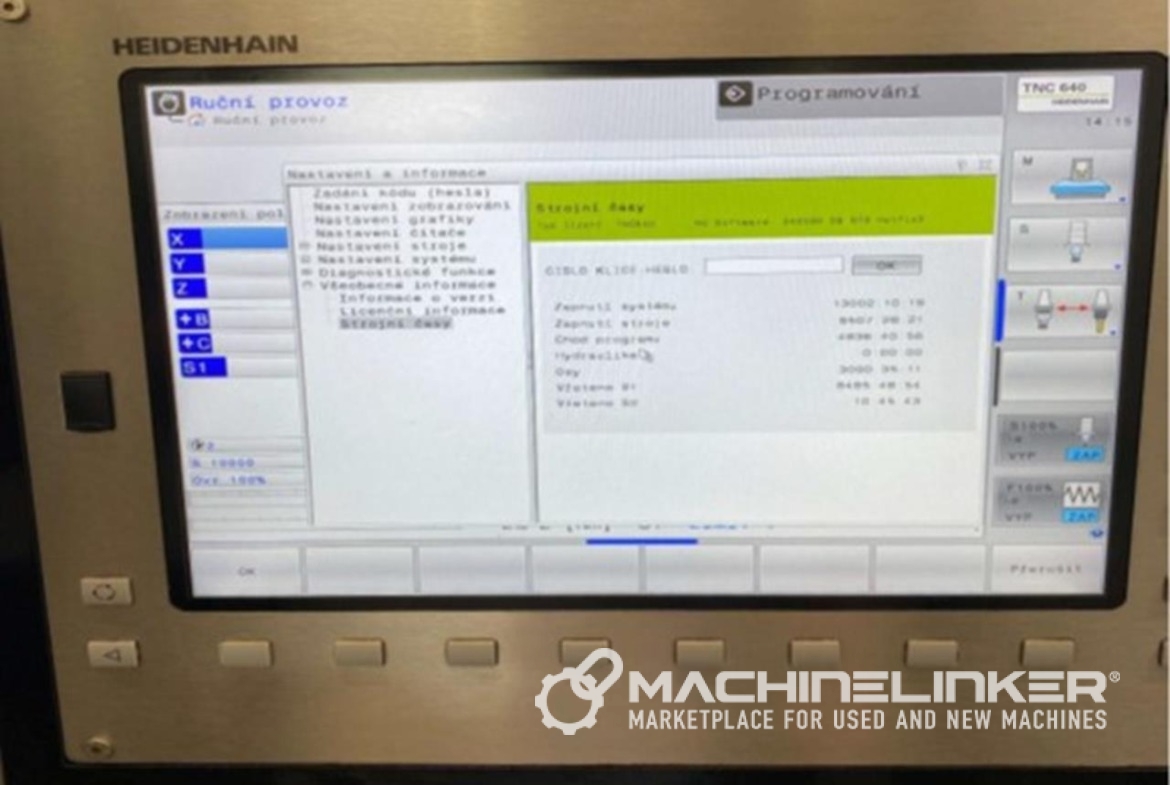

Control system: Heidenhain TNC 640
Total hours: 13002 h
Hours on: 9507 h
Length of the working table: 1700 mm
Width of the working table: 850 mm
Maximum table load (evenly distributed): 1200 kg
Block speed: 15000 1/min
X-Axis travels: 1500 mm
Y-Axis travels: 900 mm
Z-Axis travels: 1100 mm
Max. machining dia.: 800 mm
Number of stack positions: 60 pcs
Machine weight: 17000 kg
Equipment:
Vices (2 pcs)
Heidenhain tool probe
Workpiece probe Heidenhain

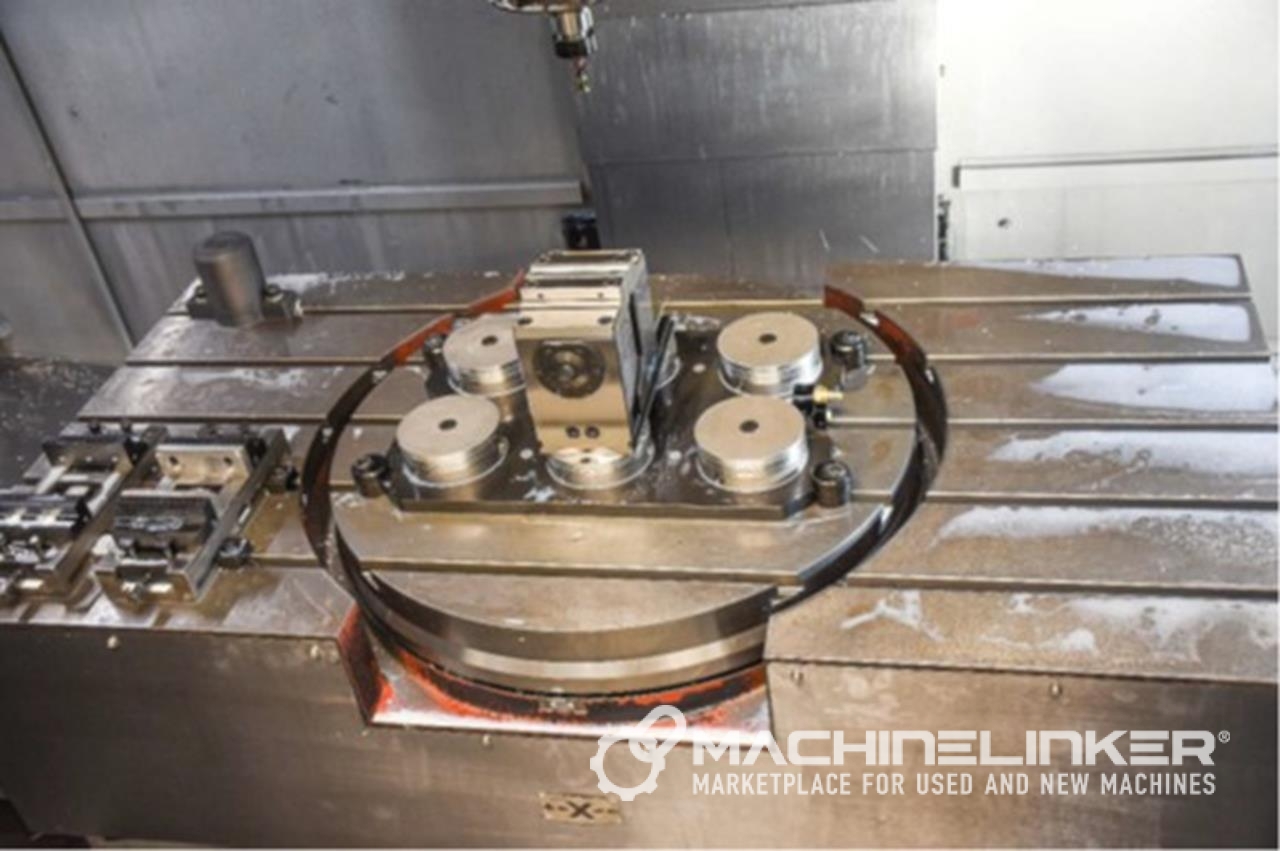

VERO clamping (Schunk brand)
Clamps (approx. 79 pcs.)
Type: BX900T
Producer: Pinnacle
Made in: 2019
Characteristic:
Control system: Heidenhain TNC 640
Total hours: 13002 h
Hours on: 9507 h
Length of the working table: 1700 mm
Width of the working table: 850 mm
Maximum table load (evenly distributed): 1200 kg
Block speed: 15000 1/min
X-Axis travels: 1500 mm
Y-Axis travels: 900 mm
Z-Axis travels: 1100 mm
Max. machining dia.: 800 mm
Number of stack positions: 60 pcs
Machine weight: 17000 kg
Equipment:
Vices (2 pcs)
Heidenhain tool probe
Workpiece probe Heidenhain
VERO clamping (Schunk brand)
Clamps (approx. 79 pcs.)
Machine location
Open on Google Maps-
Address: Kobližná 683/3
-
City: Brno
-
Zip/Postal code: 60200
-
Country: Czech Republic
