Details
Updated on April 7, 2025 at 1:12 pm-
Machine ID:
ML-28550 -
Category:
Machining centers (vertical) - Machine type:
Drilling and tapping center - Manufacturer:
HAAS - Model:
DT-1 -
Year of manufacture:
2010 -
Condition:
Used - Detailed condition:
Good (used) - Rental?:
No
Description
Catalog No. : 8302
Type: DT-1
Producer: HAAS
Made in: 2010
Characteristic:
Control system: HAAS
Length of the working table: 660 mm
Width of the working table: 381 mm
Milling spindle speed: 10000 1/min
Maximum table load (evenly distributed): 226.8 kg
Power of the spindle drive: 11.2 kW
X-Axis travels: 508 mm
Y-Axis travels: 406 mm
Z-Axis travels: 394 mm
Threading speed: 5000 1/min
Machine weight: 2336 kg
Equipment:
Renishaw Tool probe
Renishaw Workpiece probe

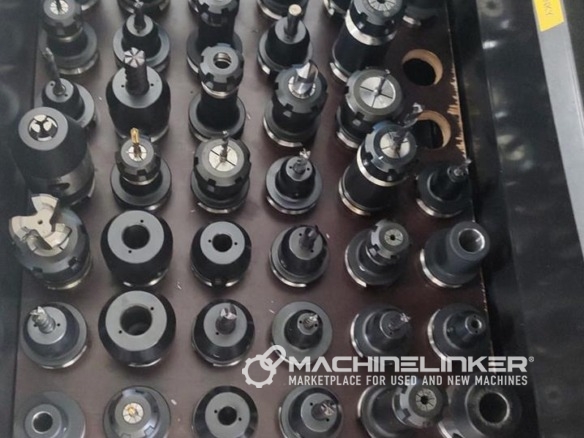

Chuck (30 ks)
Weldons
Drill head
Type: DT-1
Producer: HAAS
Made in: 2010
Characteristic:
Control system: HAAS
Length of the working table: 660 mm
Width of the working table: 381 mm
Milling spindle speed: 10000 1/min
Maximum table load (evenly distributed): 226.8 kg
Power of the spindle drive: 11.2 kW
X-Axis travels: 508 mm
Y-Axis travels: 406 mm
Z-Axis travels: 394 mm
Threading speed: 5000 1/min
Machine weight: 2336 kg
Equipment:
Renishaw Tool probe
Renishaw Workpiece probe
Chuck (30 ks)
Weldons
Drill head
Machine location
Open on Google Maps-
Address: Kobližná 683/30
-
City: Brno
-
Zip/Postal code: 60200
-
Country: Czech Republic
