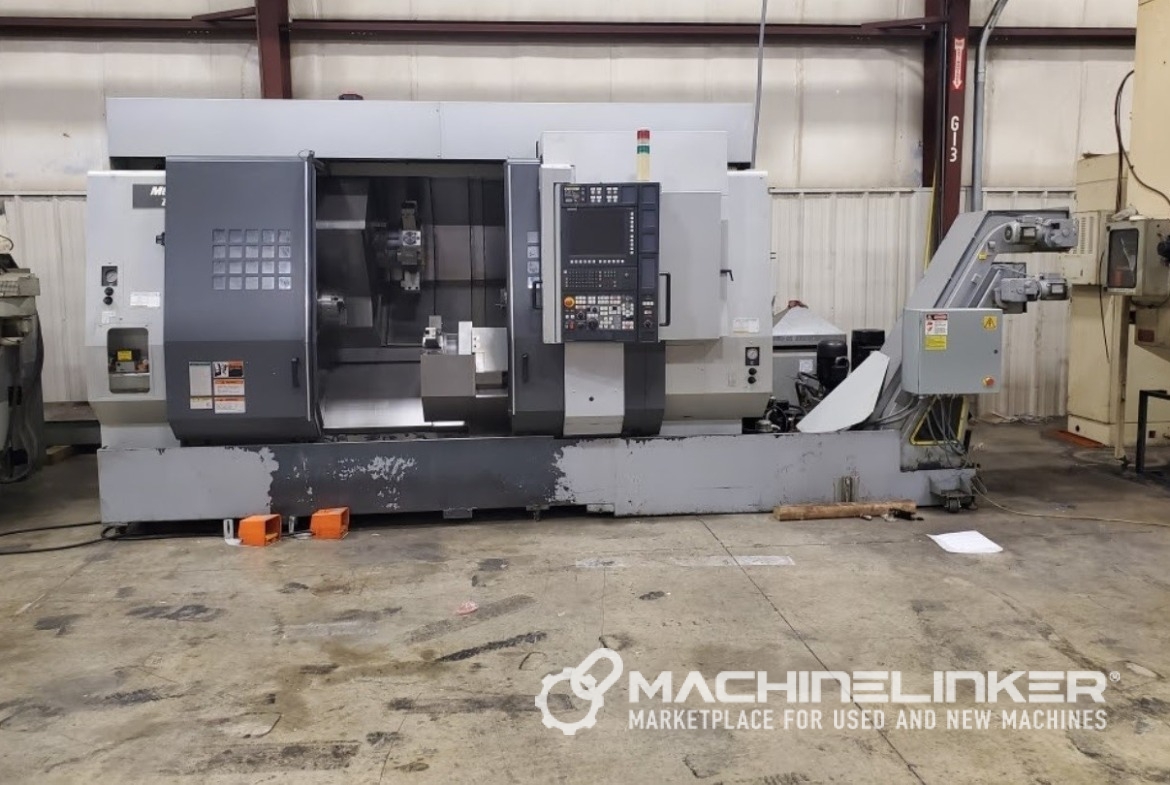

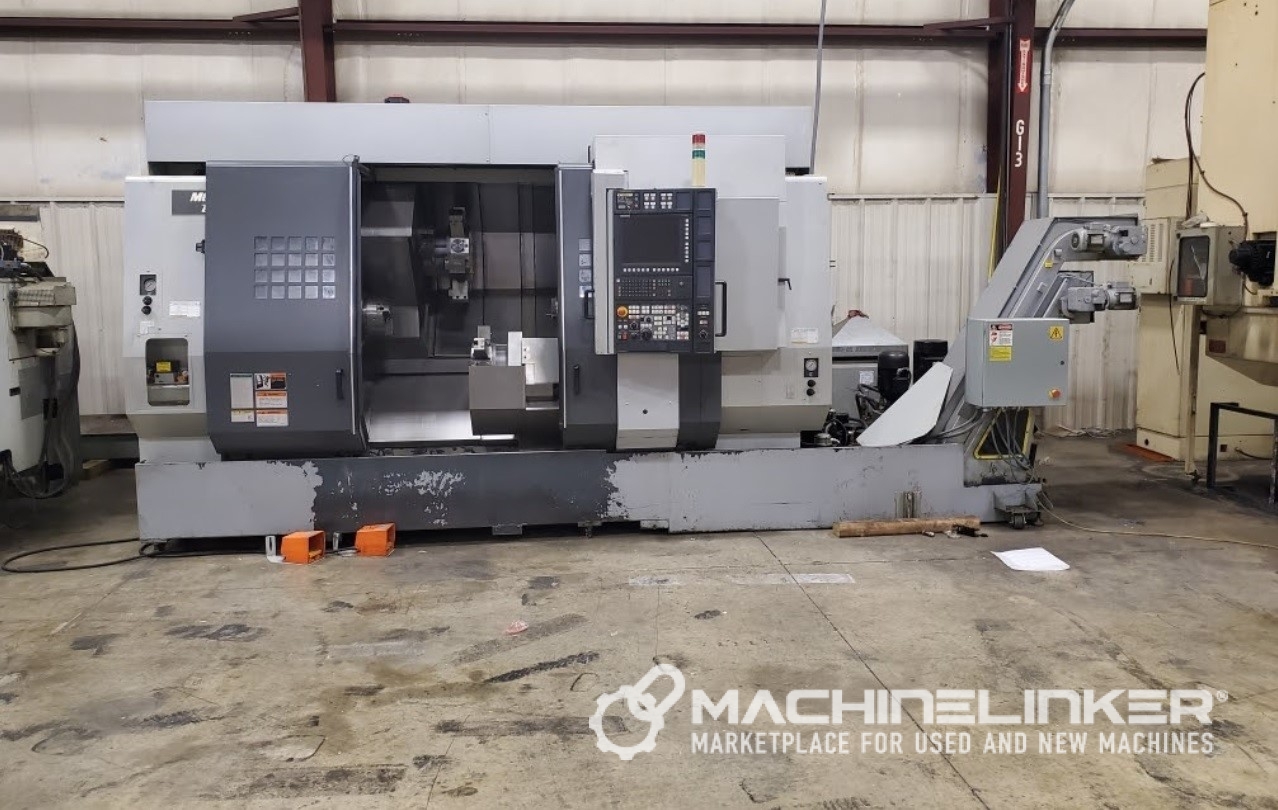

Mori Seiki ZT2500Y

Capacity Max workpiece swing diameter 14.96”, Maximum distance between spindle noses. 51.18”, Maximum turning diameter. (turret) no.1 (14.96”), no.2 (14.17”), Max turning length 13.78”. Travel: X-Axis Travel (no. 1/no. 2) 11.02” / 7.87”, Z-Axis Travel 37.8”, Y-Axis Travel 2.76”, Spindle 2 travel (B-Axis) 38.78”. Spindle 1 – Spindle speed range 40 to 4,000 RPM, Through spindle hole diameter 3.46”,Min spindle indexing angle 0.001 Degrees ,Spindle nose A2-8,Spindle motor 30 HP .Spindle 2 – Spindle speed range 40 to 4,000 RPM, Through spindle hale diameter 3.46”,Min Spindle indexing angle 0.001 Degrees, Spindle nose A2-8,Spindle motor 30 HP. Turret 1 – Turret stations 12,Rotary tool spindle speed 4,000 RPM, Rotary tool motor 6.3 HP. Turret 2 – Turret stations 12, Rotary tool spindle speed 4,000 RPM, Rotary tool motor 6.3 HP, Floor space required: 165.5” x 108.9” x 109.3” tall, Machine weight: 28,600 lbs

Equipped with: Mori MSX-501III CNC control, Mayfran ConSep 2000 Chip conveyor system, Thru spindle coolant system, spindle one, 6 Turning tool holders, 6 Boring bar holder, 1 Milling holder, Programmable data input G10, Custom macro ”B” and 600 common variables, interruption type, Work coordinate system, 48 sets, Automatic double door, Chuck high/low pressure system (both spindles), coolant oil skimmer, 480/220 V transformer.
