Updated on November 11, 2023 at 2:56 pm
  • Machine ID:
  • Category:
    Other chemical-pharmaceutical equipment
  • Machine type:
    Tablet Press
  • Manufacturer:
  • Model:
  • Year of manufacture:
  • Condition:
  • Detailed condition:
    As good as new (ex-display)
  • Rental?:

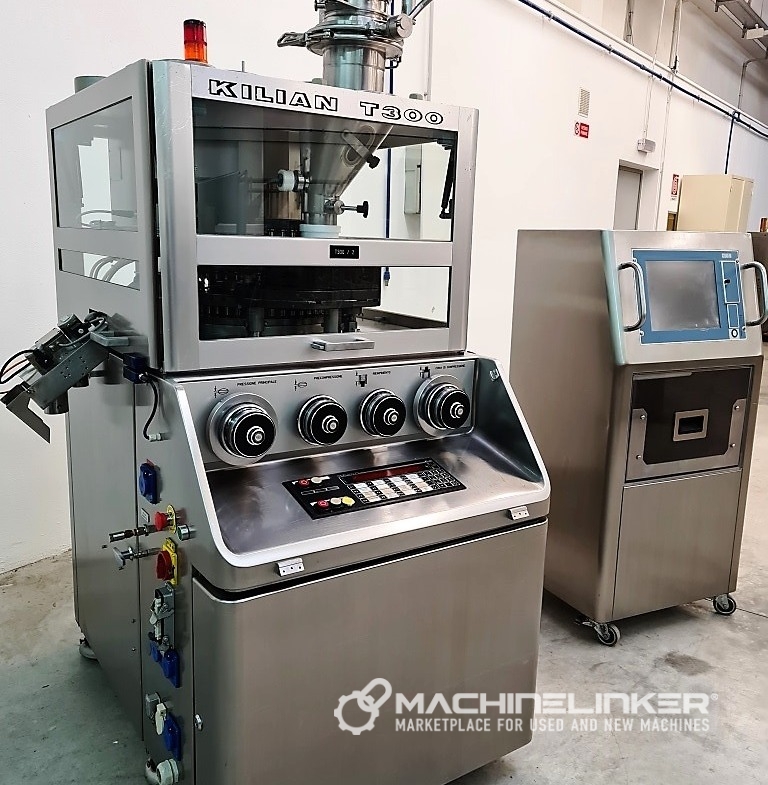

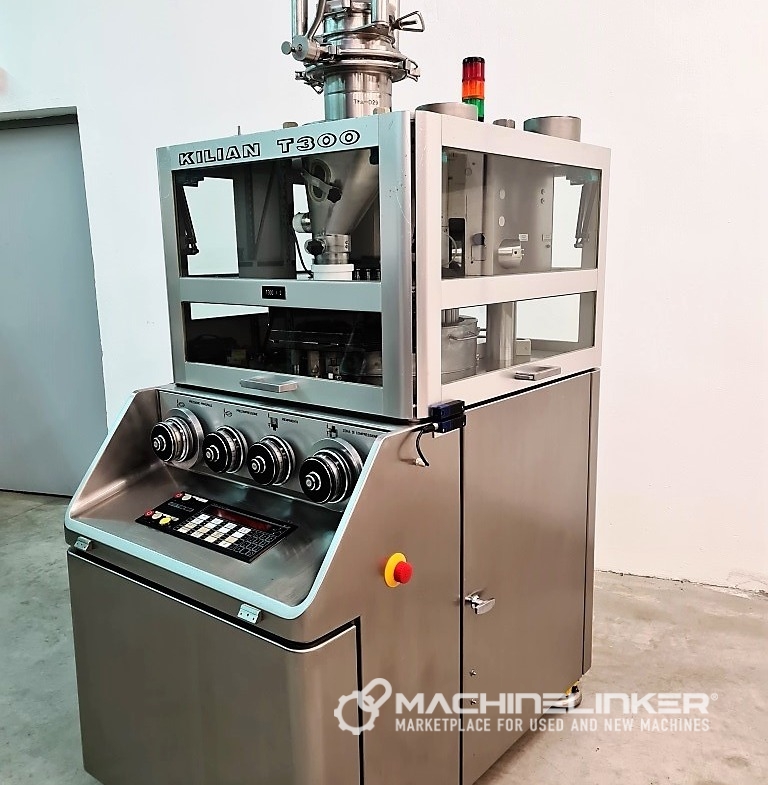

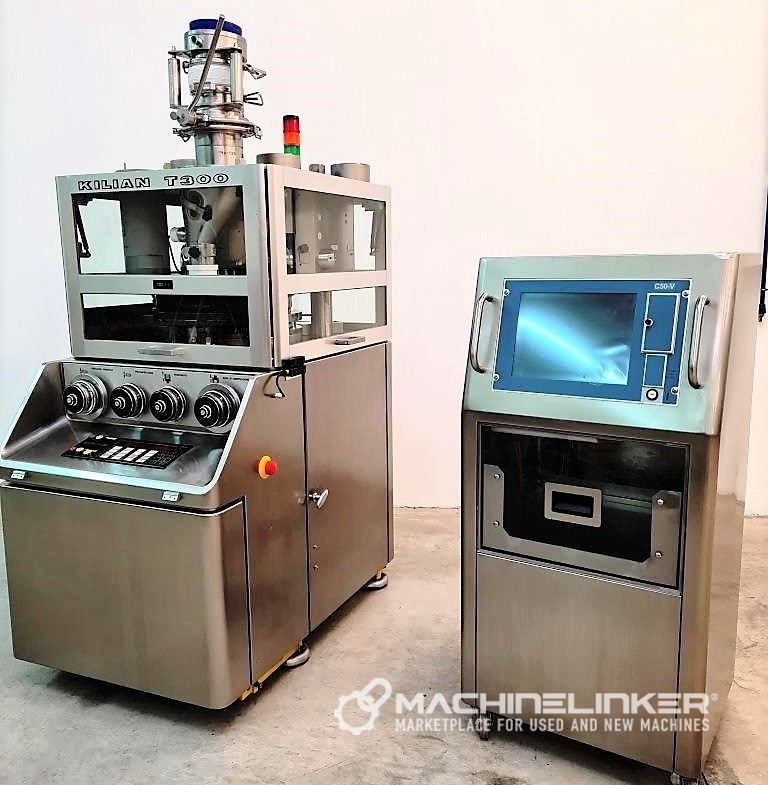

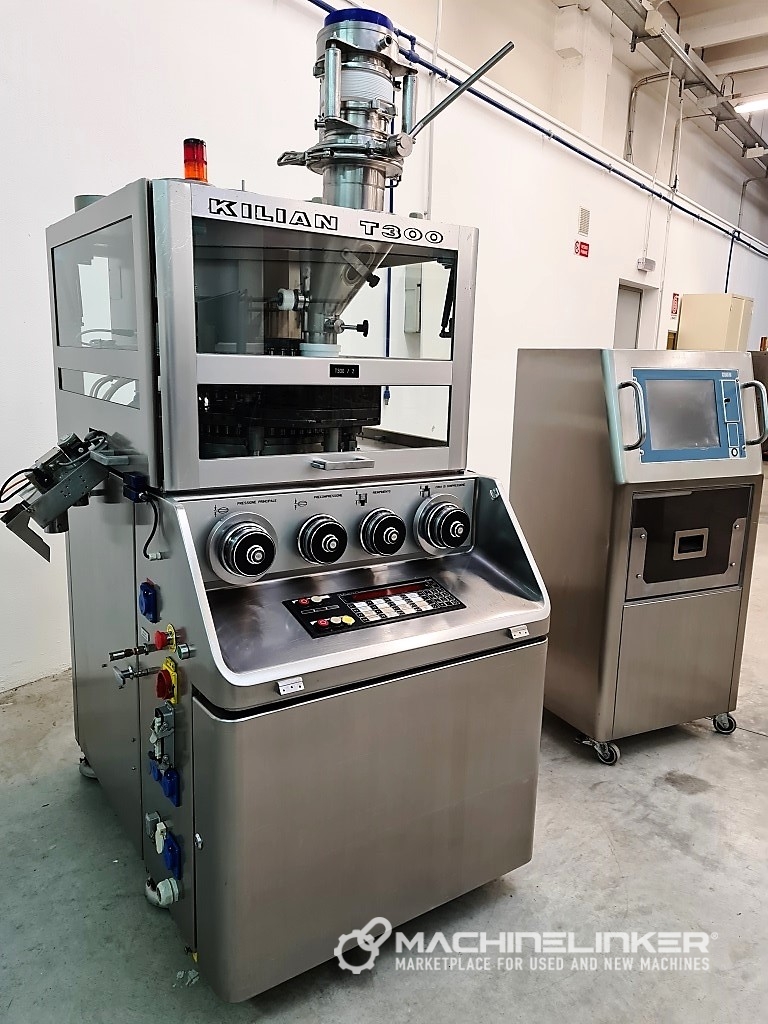

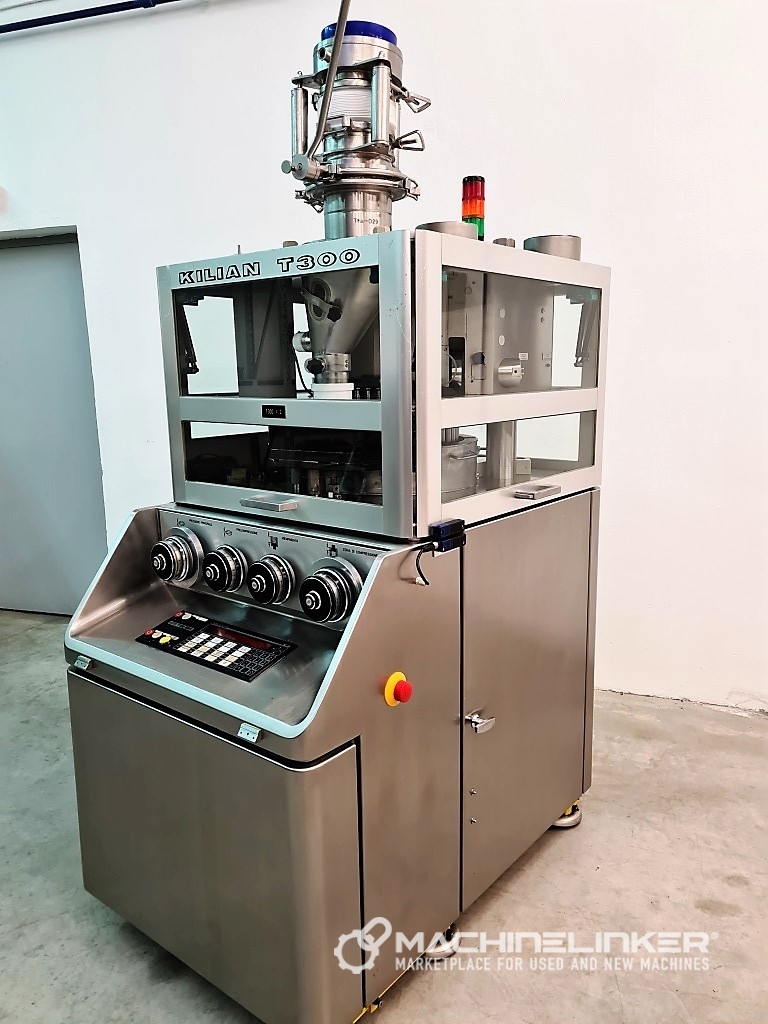

The T300 tablet press is a rotary press that compresses solids and is equipped with 40 punch stations. The exact characteristics of the press machine vary according to the type of punch chosen.

Technical data:

Length mm 1280

Width mm 865

Height mm 1850

Net weight Kg 1920

Power A 12

Frequency Hz 50

Voltage Volt 380

Productions characteristics:

Machine speed 260.000 tablets / h

Max. tablets diameter 13 mm

Filling depth 2 – 16 mm

Min. production 12.000 tablets / h

Max production 300.000 tablets / h

Mould external diameter 24,01 mm

Mould height 22,22 mm

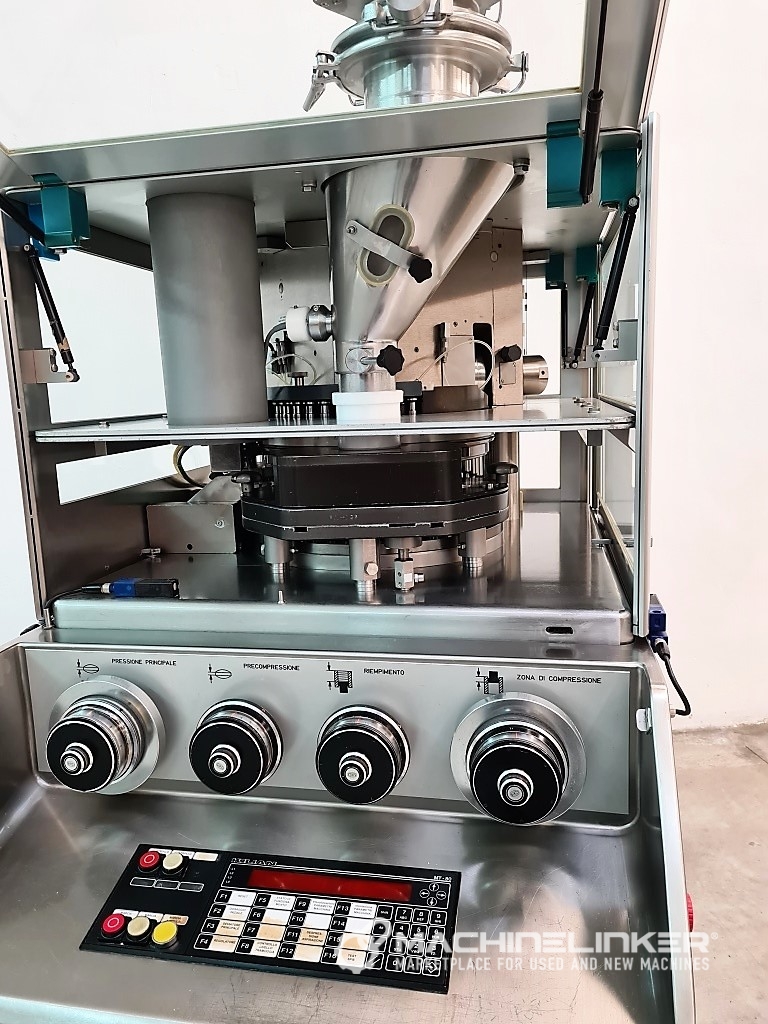

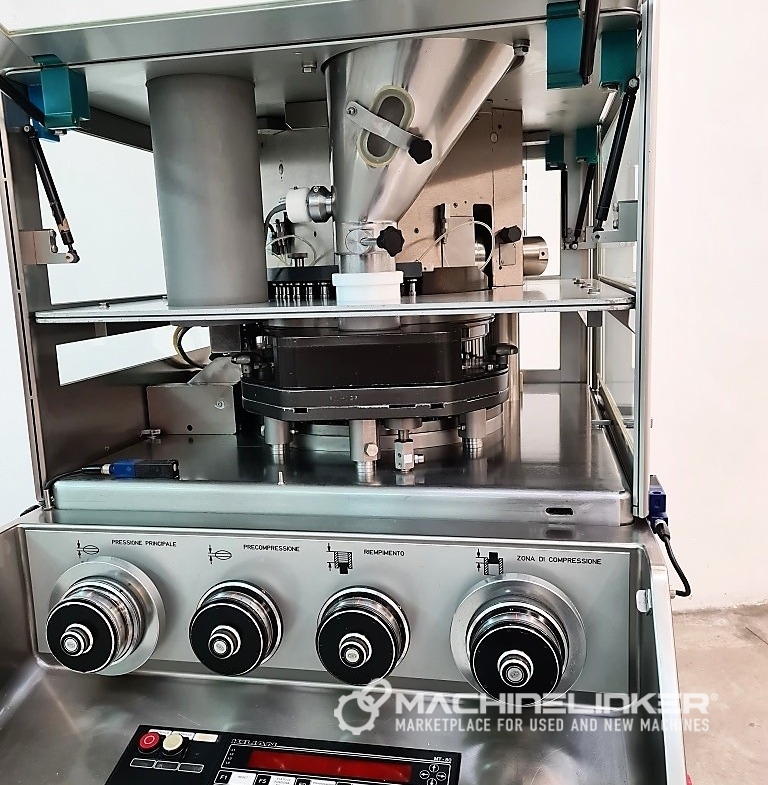

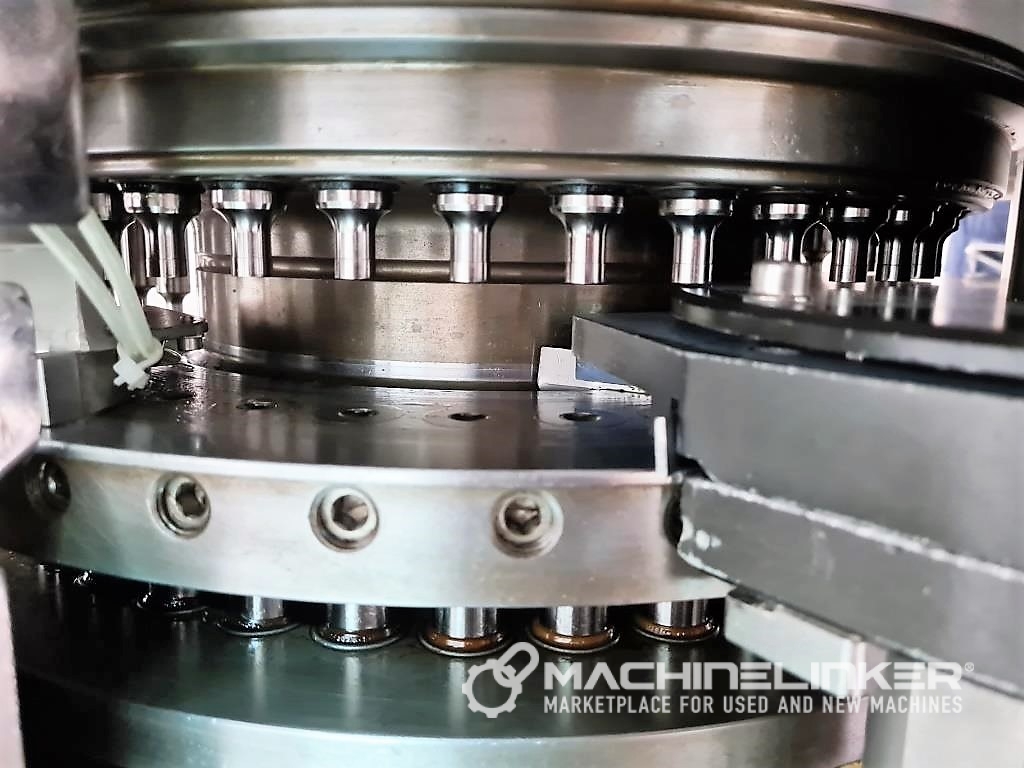

The T300 is a rotary tablet press equipped with two pairs of pressure rollers, one for pre-compression, the other for main compression. The operator side of the press is mainly in the front part of the machine where the four manual wheels, the control elements and the console are located.

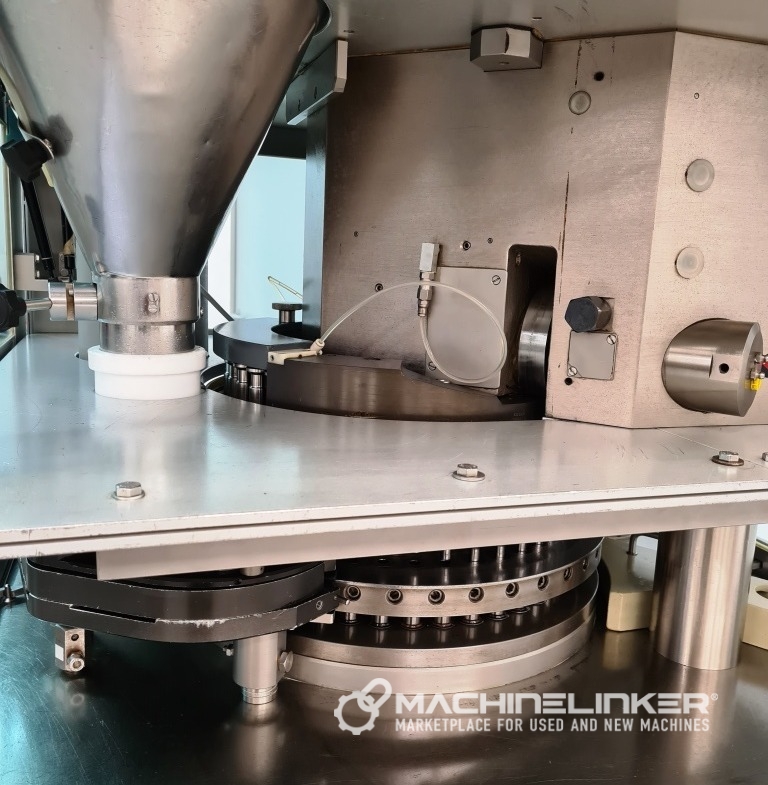

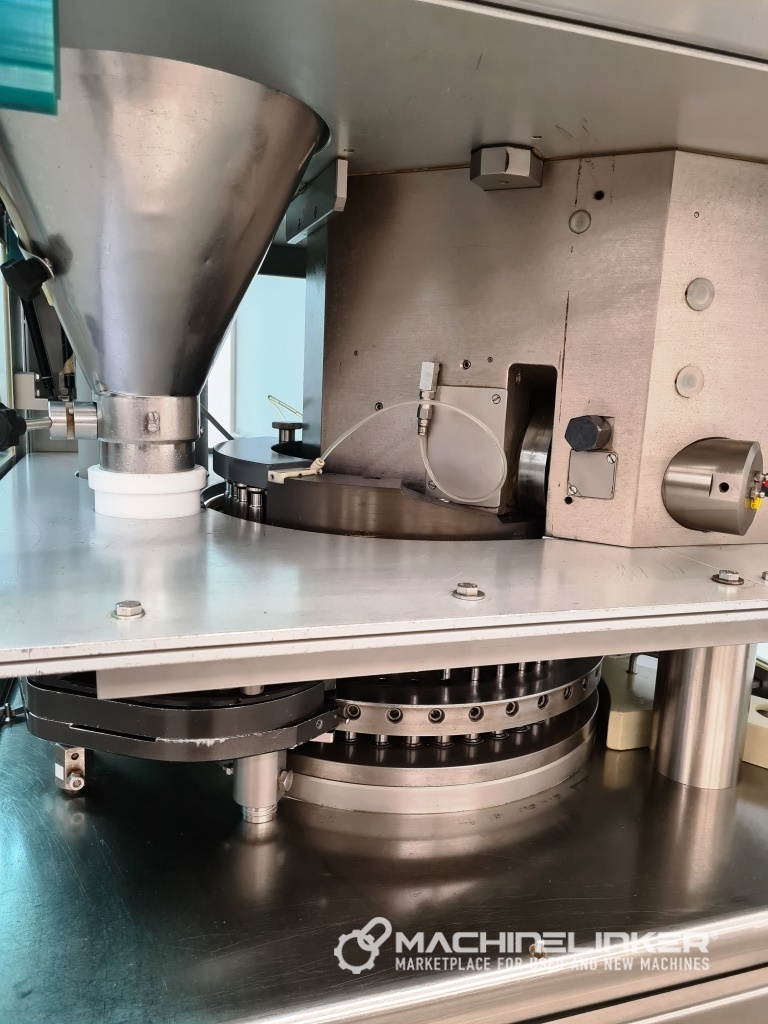

The press is fed from the top, through the feed hopper; the power supply is manual. However, for automatic feeding, the accessory can be set on the machine. The machine frame is made of steel. The Tablet Press is equipped with a series of punches for the tablet format with 10 mm of diameter. Type of tablet press tooling EU-B.
