Details

Updated on July 20, 2022 at 5:38 pm
  • Machine ID:
    ML-18348
  • Category:
    Post-press machines
  • Machine type:
    Morgana DigiFold 5000p
  • Manufacturer:
    Morgana
  • Model:
    DigiFold Pro
  • Year of manufacture:
    2014
  • Condition:
    Used
  • Detailed condition:
    Excellent (used)
  • Rental?:
    No

Description

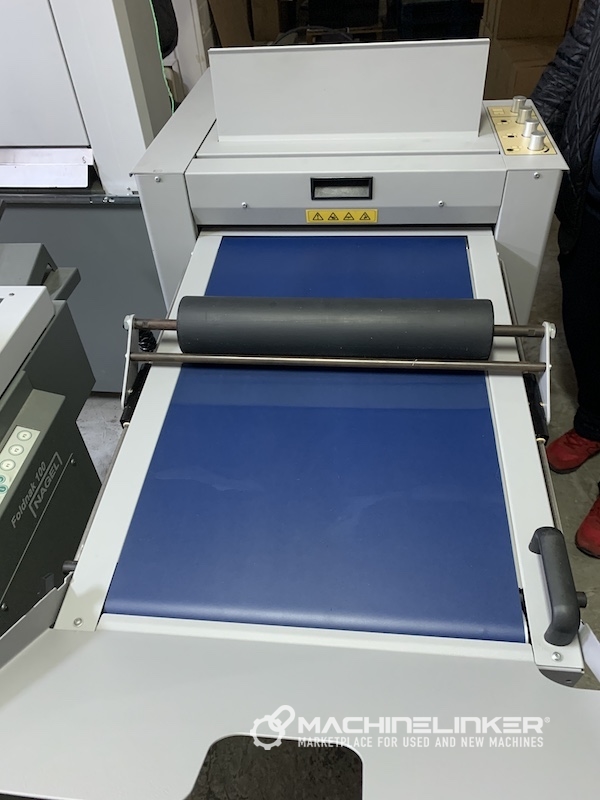

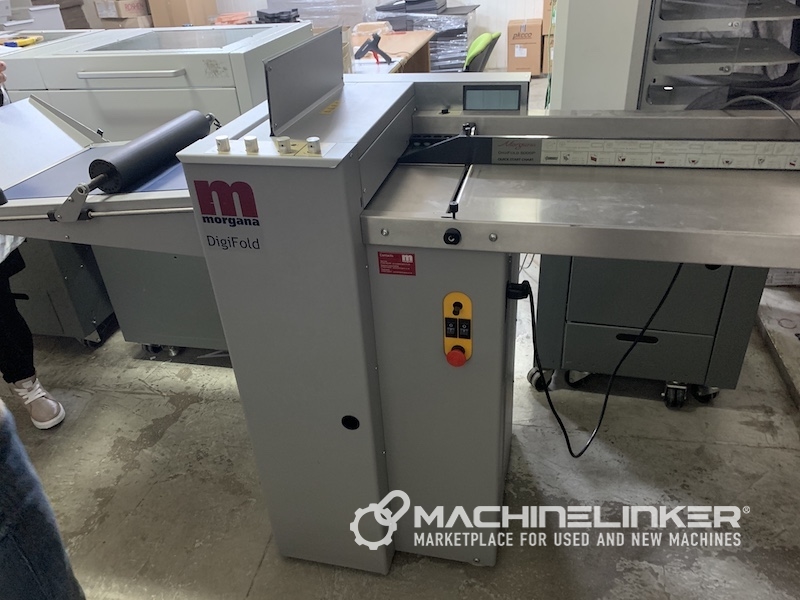

Morgana DigiFold 5000p
Feeding System: Bottom suction feed
Max. Sheet Size: 700 mm x 385 mm
Min. Sheet Size: 210mm x 140mm. (dependant on stiffness of paper and type of fold).
Max. Paper Thickness: 0.40mm
Min. Paper Thickness: 0.11mm
Max. No. Folds per Sheet: 2 Max.
Min. Repeat Crease Distance: 40mm (1.6”) Min. Repeat Fold Distance: 70 Min. Fold Distance from Leading Edge: 50mm
Min. Crease Distance from Tail Edge: 50mm
Max. No. Creases per Sheet: 9 mm
Min. Crease Distance from Leading Edge: 50mm
Min. Fold Distance from Tail Edge: 50mm
Min. Fold Length: 70mm
Speed per Hour (A4 in half): 6000 sheets
Dimensions: L: 2020mm H: 1265mm W: 680mm L: Weight: 190Kgs ( 50Kgs packing)

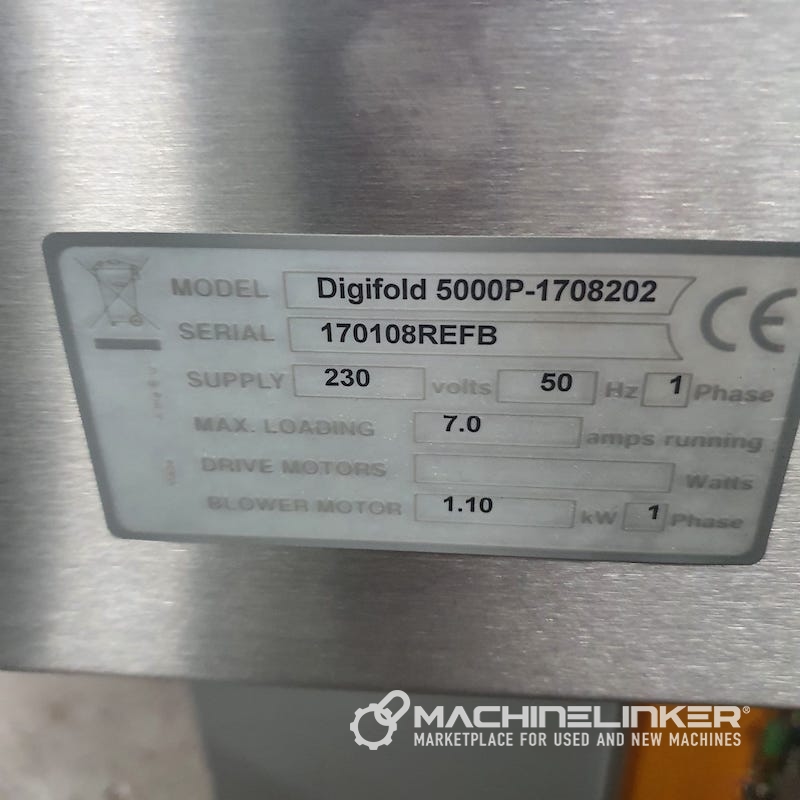

Power Requirements: 1 phase 230v 50Hz
Good condition.
