MachineLinker ID ML-26529
-
Manufacturer LODHA
-
Model LI-ST 4
-
Machine type Automatic strip packing machine
-
Year of manufacture 2025
-
Condition Brand-new (new)
-
Category Blister packaging machines
-
Capacity 36000 to 48000
-
Electric motor 0.75 HP, 3 phase, 440V, 1440 RPM/TEFC (“REMI/HINDUSTAN” make)
-
Gear box 14:1 ratio, universal mounting type (“BONFIGLIOLI ”make)
-
Power supply 3 Phase
-
Machine dimension 1100 mm x 1050 mm x 1650 mm
-
Gross weight 620 kgs.
Technical data
- ChuteThis device centers the pieces so they can enter the sealing roller by gripping them individually.
- SlittingThe slitting’s position and column number can be readily changed.
- Models available: : : :
- Foil width145 mm: 210 mm: 260 mm: 280 mm: 310 mm
- Output/Min600-1200: 1200- 1800: 1800-2500: 2250 – 3125: 2700–3750
Description

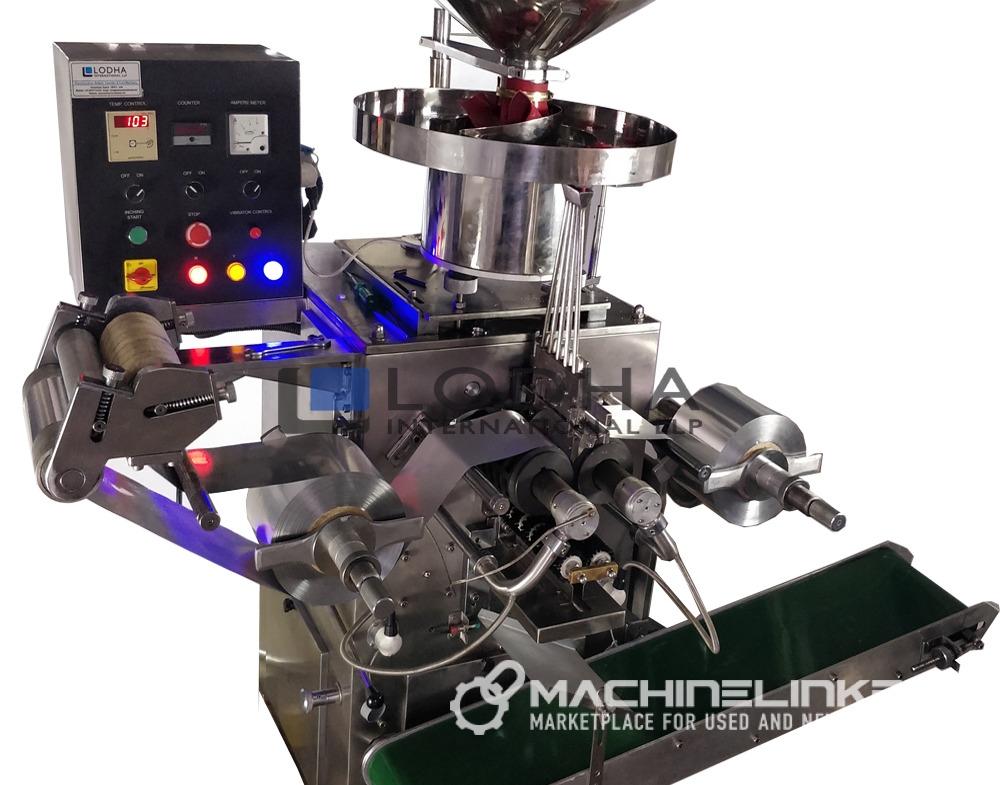

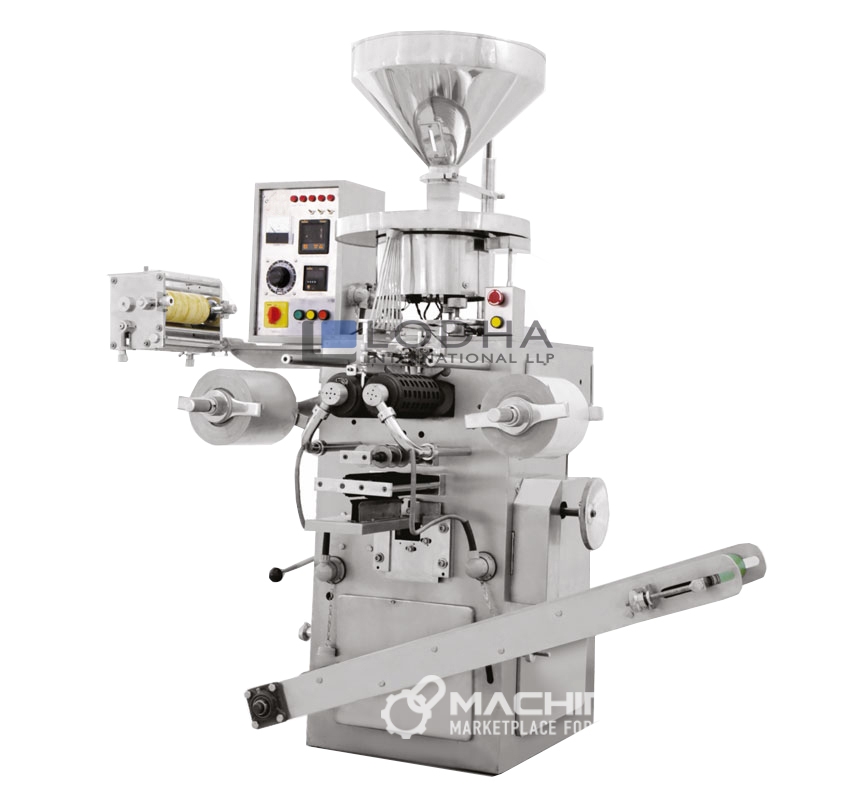

The pharmaceutical packaging industry has a need for automatic strip packing machines, which are constructed using cutting-edge technology. The strip packing machine maintains low maintenance costs while providing high speed and uninterrupted performance. Use them to quickly and easily seal any size or shape of coated or uncoated pill, capsule, or lozenge in heat-sealing materials such as aluminum foil, polythene, cellophane, or anything else you can think of.
Key Features of the Tablet Capsule Strip Packing Machine: All four processes—feeding, sealing, slitting, and cutting—are carried out automatically. Consequently, it is very efficient, which means that production costs are reduced as a result of lower labor costs.
Transfer strips from various-sized take-off conveyors to the packaging and inspection table.
Designed to fit a variety of body types and dimensions.
Various heat-sealed packing laminates can be processed using this machine.
Temperature regulation by digital means.
PLC Panel for control (Possible)
Adhering to cGMP norms.
The replacement components are simple to install.
Process Flow Diagram:
The product is transported to the chute by the vibrating feeder, which takes the supply tablets.
Chute: This device centers the pieces so they can enter the sealing roller by gripping them individually.
The adoption of a precise temperature control system allows the sealing roller to keep its temperature consistently high.
Slitting: The slitting’s position and column number can be readily changed.
Use the drawing brushes to tense the strip for flawless sealing and cutting.
Adjust the number of rows of cutting according to your needs with the cutter.
Strip Packing Machine Technical Specifications:
| Models Available | |||||
| Model: LI-ST | 4 Track | 6 Track | 8 Track | 10 Track | 12 Track |
| Foil Width | 145 mm | 210 mm | 260 mm | 280 mm | 310 mm |
| Output/Min | 600-1200 | 1200- 1800 | 1800-2500 | 2250 – 3125 | 2700–3750 |
