Romaco PROMATIC PAK 300

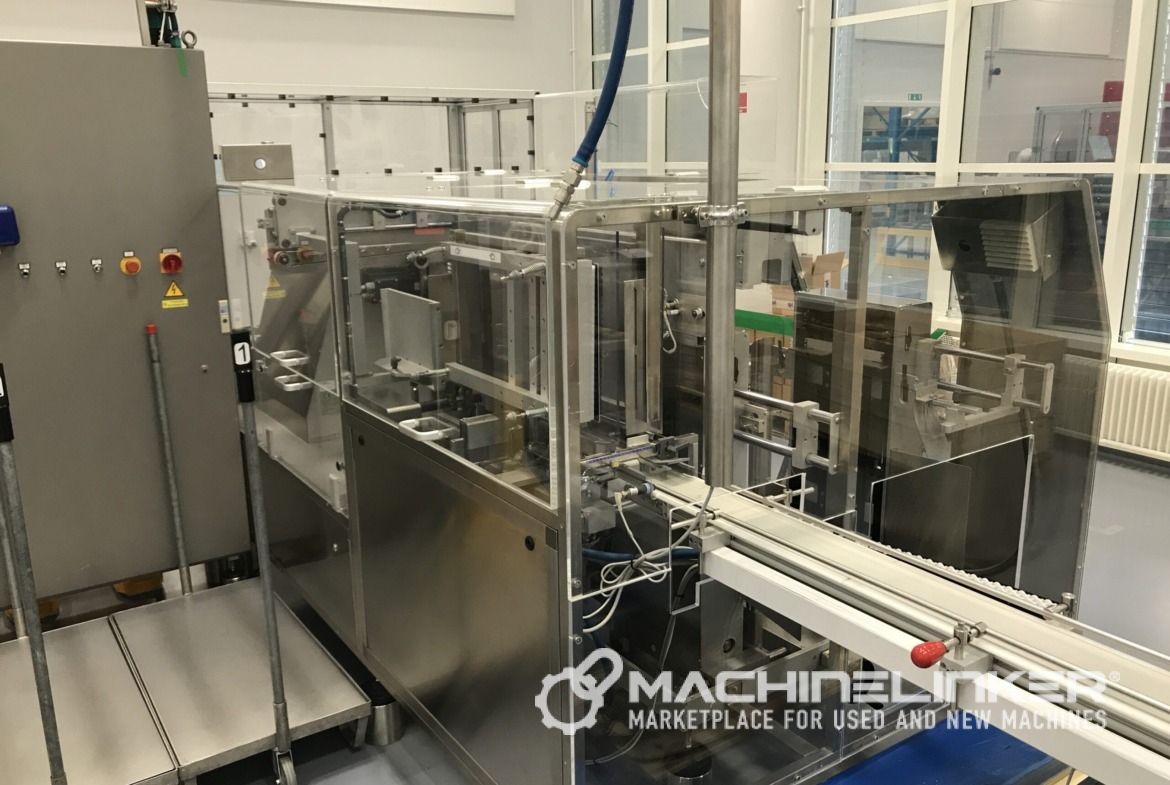

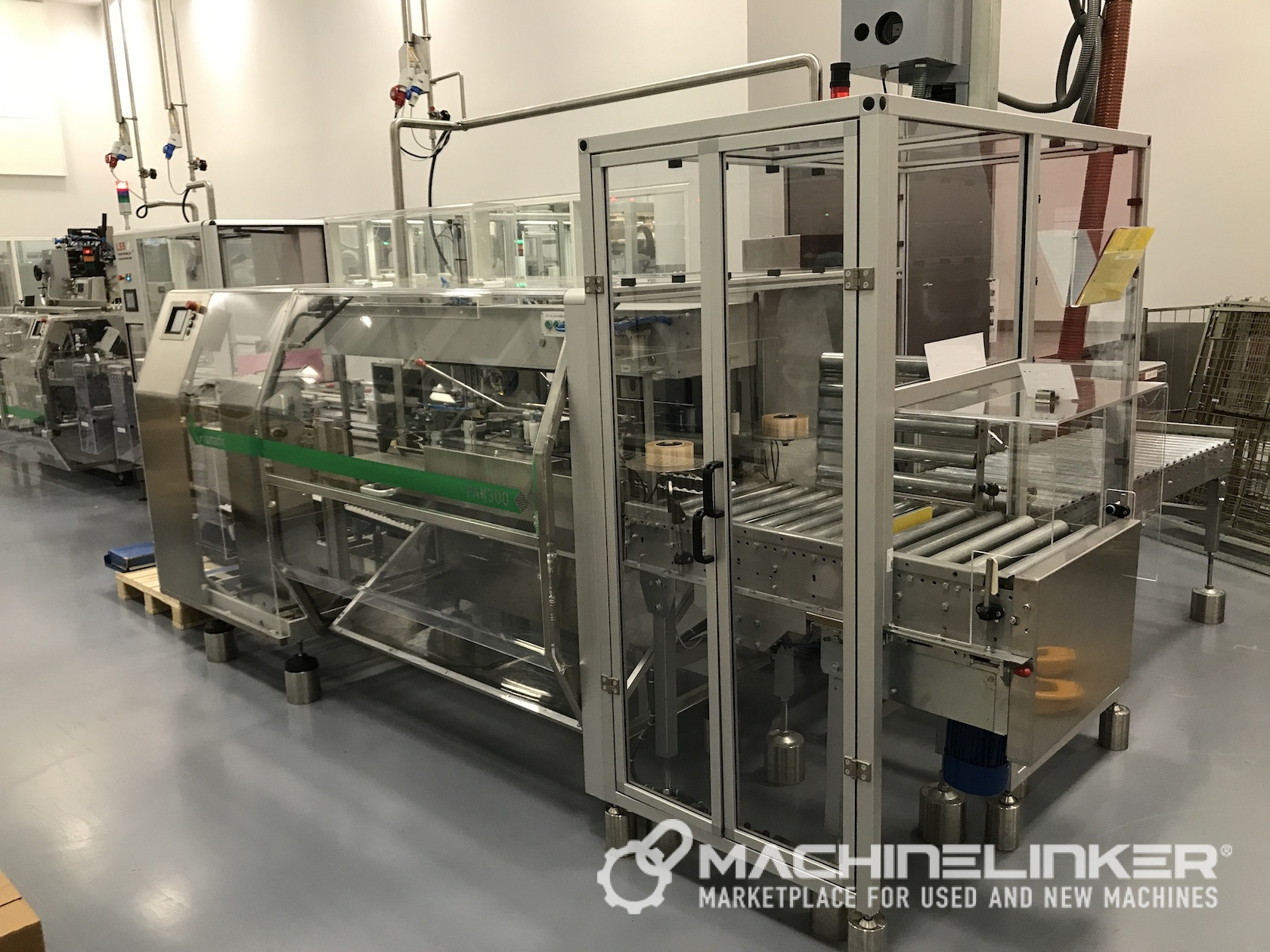

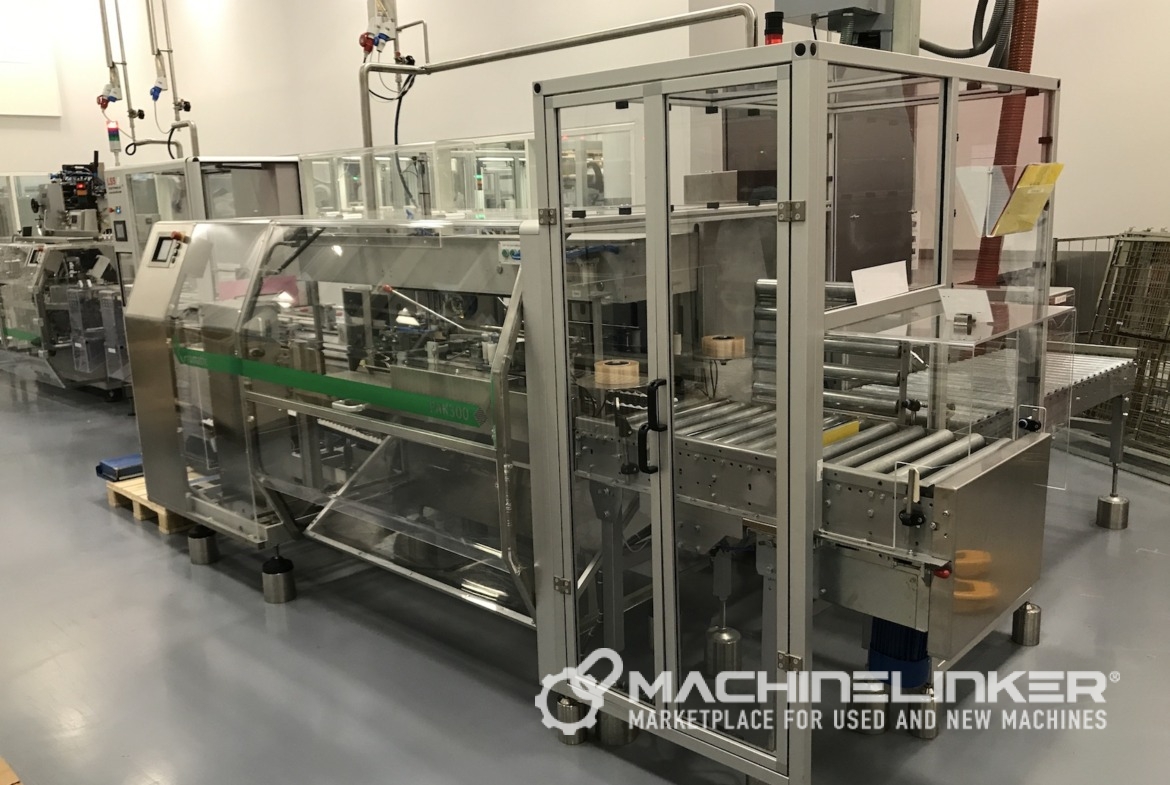

ROMACO CASE PACKER, MODEL PROMATIC PAK 300

Year of construction: 2001

PAK 300 is designed for packing cartons and/or bundles into RSC cases and features:

• high-capacity case magazine fitted with automatic lifting of the case to working height
• forced case erection by means of a double arm fitted with suction cups and Venturi vacuum unit
• closing of the flaps at the base of the case before carton insertion
• separate operating processes and work areas such as stacking, transfer and cartons insertion in the case, allowing checking of critical operations and minimizing downtime

The Romaco Promatic PAK 130 is the ideal solution for serialization and data aggregation.

Highlights

• Reduced downtime, cleaning and maintenance operations
• Clear view of product flow, immediate safe access to all functions and operations, high efficiency level
• GMP design
• Ergonomic design
• Machines error diagnosis and troubleshooting functions enhance operation of the machine
• Quick and easy changeover

Data

• Mechanical speed: 8
• Power consumption, in kW: 4
• Air consumption, in Nl/min: 250
• Weight approx., in kg: 1,800
• Length, in mm: 4,350
• Depth, in mm: 1,850
• Height, in mm: 1,715
• Carton size range (mm)
• A min. 20, max. 150
• B min. 15, max. 85
• C min. 60, max. 210
• Case size range (mm)
• a3 min. 180, max. 500
• b3 min. 120, max. 350
• c3 min. 120, max. 350
